You are here: Home > Plasma Cutter Parts > 118-017 YA3559 Snap-On (YA3550 with machine torch)

118-017 YA3559 Snap-On (YA3550 with machine torch)

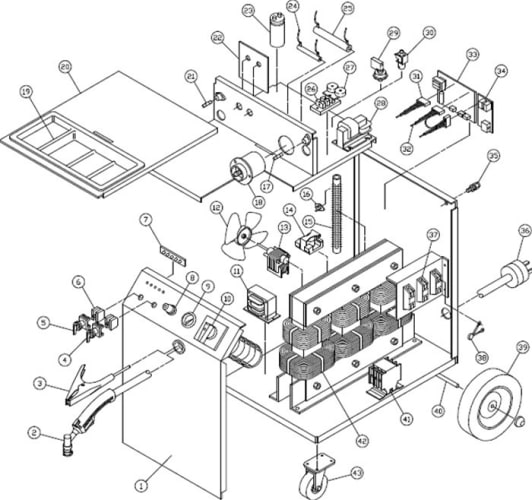

118-017 Replacement Parts List
Item No.
Part No.
Description
1
743-209-666
Front Panel
2
238-304-000
Hand Held Torch Assembly, 25 ft

334-322-100
Hand Held Torch Assembly, 45 ft

334-315-100
180 Machine Torch Assembly
3
238-305-666
Ground Cable with Clamp

239-010-102
Clamp Only
4
246-251-666
Run / Setup Switch
5
246-251-666
Power Switch
6
246-252-666
Contact (NO)

246-253-666
Contact (NC)
7
880-200-666
Signal V Circuit Board
8
254-005-666
Air Regulator
9
251-003-666
Pressure Gauge
10
246-246-666
Rate Selector Switch

246-265-666
Knob Only
11
880-199-888
Control Transformer
12
316-007-666
Fan Blade
13
216-088-666
Fan Motor
14
246-255-666
Pilot Arc Relay
15
245-100-666
Pilot Arc Resistor
16
216-073-666
Thermal Breaker
17
245-120-666
0.5 Amp Fuse
18
880-205-666
Coupling Coil
19
312-130-666
Parts Tray
20
743-219-666
Top Panel
21
245-116-666
4 Amp Fuses (pack of 3)
22
880-206-666
Input / Output Circuit Board
23
213-028-666
Capacitor
24
860-853-666
5 Ohm Resistor
25
880-210-666
500 Ohm Resistor
26
512-101-666
Spark Block with Points
27
213-029-666
Pilot Capacitors
28
880-202-666
High-Voltage Transformer
29
246-254-666
Air Safety Switch
30
246-166-666
Air Solenoid
31
880-196-666
Wire Harness
32
880-195-666
Wire Harness
33
860-962-666
Main Circuit Board
34
880-209-666
Pilot Arc Circuit Board
35
253-089-666
Port Fitting with Nut
36
248-221-666
Power Cord
37
244-085-666
Rectifier
38
880-077-666
Transient Protector
39
413-052-666
Wheel with Hardware
40
413-053-666
Axle with Hardware
41
246-249-666
Contactor
42

Main Transformer
43
413-054-666
Castors (2) with Hardware
44
410-632-016
Right Side Panel (Not Shown)
45
410-633-016
Left Side Panel (Not Shown)
46
412-357-666
Handle (Not Shown)
47
412-359-016 Cable Wraps (Not Shown)
48
412-360-016
Lifting Ring (Not Shown)
