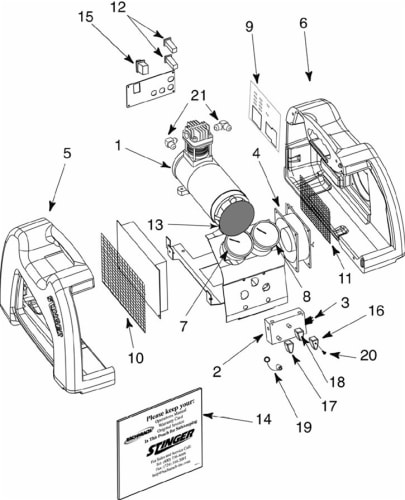

| Item No. |
Part Number |
Description |
Qty |
| 1 |
2045-0620 |
Compressor (110/120 VAC) |
1 |
| 1 |
2045-0720 |
Compressor (220 VAC) |
1 |
| 2 |
2023-0100 |
Manifold |
1 |
| 3 |
2014-0310 |
High Pressure Switch, 550 psi |
1 |
| 4 |
2013-0090 |
Fan, 4", 110/120 VAC |
1 |
| 4 |
2013-0040 |
Fan, 4", 220 VAC |
1 |
| 5 |
2043-0140 |
Plastic Case, Left |
1 |
| 6 |
2043-0150 |
Plastic Case, Right |
1 |
| 7 |
2063-0150 |
Gauge, Low Pressure |
1 |
| 8 |
2063-0160 |
Gauge, High Pressure |
1 |
| 9 |
2015-0170 |
Printed Circuit Board (110/120 VAC) |
1 |
| 9 |
2015-0160 |
Printed Circuit Board (220 VAC) |
1 |
| 10 |
2043-0160 |
Screen Guard, Condenser |
1 |
| 11 |
2043-0130 |
Screen Guard, Fan |
1 |
| 12 |
2014-0030 |
Circuit Breaker, 10 amp |
2 |
| 13 |
2013-0055 |
Compressor Fan Blade |
1 |
| 14 |
2043-0170 |
Vinyl Storage Pouch |
1 |
| 15 |
2090-0059 |
Power Switch |
1 |
| 16 |
2043-0120 |
Plastic Knob, Outlet, Red |
1 |
| 17 |
2043-0100 |
Plastic Knob, Inlet, Blue |
1 |
| 18 |
2043-0110 |
Plastic Knob, Black |
1 |
| 19 |
2051-0660 |
Plastic Caps w/ Retainer 3/8" |
2 |
| 20 |
2051-1680 |
Screws For Knobs |
3 |
| 21 |
2022-0030 |
Fitting, Cylinder Head Elbow |
2 |
| - - |
2079-1130 |
Instruction Manual |
1 |
| - - |
2090-0091 |
80% Tank Full Shutoff Kit (Optional) |
1 |
| |
Stinger Compressor Parts
| Part No. |
Item |
Description |
Qty |
| 2081-0410 |
1 |
Motor Shaft Head Bearing |
1 |
| 2081-0370 |
2 |
Crank Housing |
1 |
| 2043-0030 |
3 |
Shaft Seal |
1 |
| 2051-1900 |
4 |
Screw, Machine, M5 x 10MM |
1 |
| 2081-0310 |
5 |
Piston Cup Seal Retainer |
1 |
| 2043-0020 |
6 |
Piston Cup Seal |
1 |
| 2081-0270 |
7 |
Piston |
1 |
| 2081-0400 |
8 |
Piston Journal Bearing |
1 |
| 2081-0260 |
9 |
Crank |
1 |
| 2077-0940 |
10 |
Gasket |
1 |
| 2081-0300 |
11 |
Crank Housing End Cover |
1 |
| 2051-1920 |
12 |
Screw, Cap, M5 x 18MM |
4 |
| 2081-0390 |
*13 |
Shim, 0.002" |
1 |
| 2081-0420 |
*14 |
Shim, 0.003" |
1 |
| 2081-0430 |
*15 |
Shim, 0.005" |
1 |
| 2077-0950 |
16 |
O-Ring, #026 |
1 |
| 2081-0290 |
17 |
Cylinder |
1 |
| 2090-0039 |
18 |
Valve Plate Assembly |
1 |
| 2081-0280 |
19 |
Cylinder Head |
1 |
| 2051-1910 |
20 |
Screw, Cap, M5 x 50MM |
4 |
| 2090-0040 |
21 |
Motor Brushes |
2 |
| 2090-0041 |
22 |
Cap, Motor Brush |
2 |
| 2090-0042 |
- - |
Compressor Rebuild Kit Includes Items 4, 5, 6, 13, 14, 15, 16, 18 |
1 |
|
|
|
|
| *Any or all of these shims may be used. |
|
|
