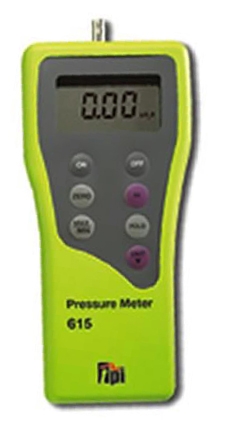

TPI 615 Digital Manometer - Single Input Manometer with ±80 inH2O range and 0.01 in H2O resolution. Seven units of pressure: inH2O, mbar, KPa, PSI, mmH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings. This model measures over the range of -40.0 to +120.0 mbar. Each unit has increased resolution of 0.01 mbar and automatically auto-ranges at + 19.00 mbar to 0.1 mbar resolution. Each is supplied with carry pouch, battery and instruction manual.
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
- Single input with +/-80” H2O range
- Seven units of measure (mbar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
- Display - 4 digit with backlight
- Smooth - Stabilizes display when measuring fluctuating pressures
- Data Hold - Freezes reading on display
- Min / Max - Records Min/Max readings
- Auto Off: Conserve battery power
Standard Accessories Included:
- 9V Alkaline battery (A009A)
- Soft Pouch (A600)
- Silicone Tube w/ ¼” barbed 1/8” NPT fitting (A603)
|
Model 615 Specifications
|
|
Measurement Range:
|
±80” H2O
|
|
Display:
|
4 Digit LCD with backlight
|
|
Input Type:
|
Single (1/4” Barbed)
|
|
Resolution (max):
|
0.01” H2O
|
|
Accuracy:
|
+/-(0.5% of reading + 5 digits)
|
|
Functions:
|
One Touch Zero, Data Hold, Back-light, Unit Selection,
Smoothing, Auto power Off, Min / Max Record
|
|
Units of Measure:
|
7 Units (mbar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
|
|
Battery Type:
|
9V alkaline
|
|
Battery Life:
|
80 hours (Typical)
|
|
Auto Power Off:
|
40 minutes
|
|
|
|
|
|
|
