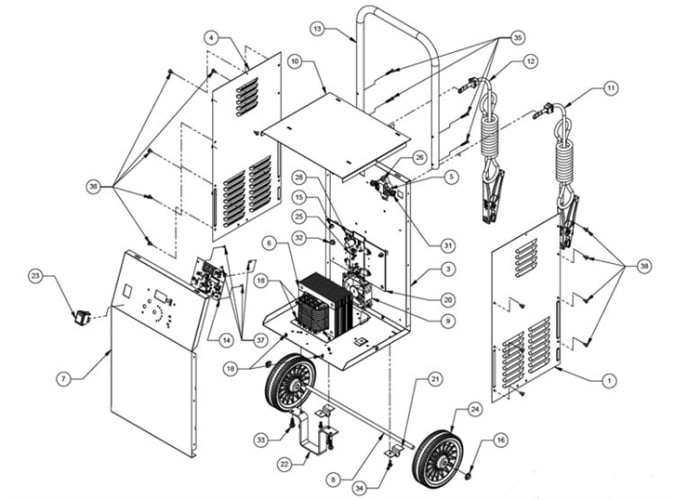

SE-1555A Schumacher Battery Charger Parts List

ITEM NO. PART NUMBER DESCRIPTION QTY.
5 3999000115 Circuit Breaker 32 Volt DC 70 Amp 3000 Amp 1
6
0093026647 Transformer Aluminum 2/20/55/150A - 12V Auto 1
8 0099000066 Axle Tube Wheel Charger Plated 1
9
4999001230 Fan Motor 12 Volt DC Muffin Ultra Quiet 1
11 3899003570 Cable 8Ga Red 85" With Clamp 1
12 3899003574 Cable 8Ga Black 85" With Clamp 1
13 3599000662 Handle 3/4 Dia. 22 Ga Steel Black 1
14 2299002095 Control Display Board 1
15 2199700009 Grommet, 1/2 Nylon 2
16 2199700006 End Cap For 3/8" Dia. Axle 2
17 2199700002 Grommet 1/4" Nylon
1
21 1199004366 Bracket, Wheel Charger Axle 2
22 1199003352 Charger Foot, Black 1
23 0400000037 Switch Rocker Dpdt On-Off-On 1
24 0099000080 Wheels 6" Plastic 3/8" Axle 2
25 Discontinued Power Control Board Assembly With Heatsink 4 Pin Plug (Old Style) 1
25 2299001594 Power Control Board Assembly With Heatsink 6 Pin Plug (New Style) 1
25 2299002160 Power Control Board Only 6 Pin Plug (New Style) 1
31 5199000406 Circuit Breaker Connection Screw 2
39 5299000091 Nut Hex 1/4-20 Conical Zinc Plated 1
51 0090026140 Power Cord SJTOWA 16/3 96" 1
- 2299001542 12 Volt DC Fan Speed Controller (Three Wire) 1
- 2299002310 12 Volt DC Fan Speed Controller (Two Wire) 1
Sort By:
Page of 1
Bench Charge For Wheeled Battery Chargers
Wheeled Battery Charger Repair
Rate $25.00

Bench Charge For Wheeled Battery Chargers includes tear down of charger and estimate of repairs. When sending wheeled chargers it is best to remove the handle from the unit to save space. To avoid unnecessary shipping costs, always consult one of our sales representatives before sending your unit to ensure parts availability.
0099000066 Schumacher Battery Charger Axle 3/8 Dia.
0099000066 Schumacher Battery Charger Axle 3/8 Dia.
Price $3.76

0099000066 Schumacher Battery Charger Axle 3/8 Dia.15-3/8" Long.
0099000080 Wheel 6" Plastic For 3/8 Axle
0099000080 Wheel 6" Plastic For 3/8 Axle
Price $6.36

0099000080 Wheel 6" Plastic For 3/8 Axle
0400000037 Schumacher 3 Position Rocker Switch On-Off-On DPDT
0400000037 Schumacher 3 Position Rocker Switch
Price $10.42

0400000037 Schumacher 3 Position Rocker Switch On-Off-On DPDT
1199003352 Schumacher Foot, Metal
1199003352 Schumacher Foot, Metal
Price $5.60

1199003352 Schumacher Foot, Metal, no hardware included.
1199004366 Schumacher "U" Bracket For 3/8" Axle (Pair)
1199004366 Schumacher "U" Bracket For 3/8" Axle (Pair)
Price $4.60

1199004366 Schumacher "U" Bracket For 3/8" Axle
2199700006 Axle End Cap .375 Dia Axle (Pair)
2199700006 Axle End Cap .375 Dia Axle (Pair)
Price $4.50

Axle End Cap Fits .375 (3/8") Diameter Axle, Sold as a Pair, Can be used on any 3/8" Axle to secure wheels.
2199700009 Schumacher 1/2" Gromet Nylon
2199700009 Schumacher 1/2" Gromet Nylon
Price $1.52

2199700009 Schumacher 1/2" Gromet Nylon
2299001023 Schumacher Battery Charger Wheels - Handle - Hardware Kit
2299001023 Schumacher Battery Charger Wheels - Handle - Hardware Kit
Discontinued

2299001023 Schumacher Battery Charger Wheels - Handle - Hardware Kit SF8050, SE-2158, SE-3612, SE-4020, SE-4022, SE-5010A, SES-4022, SF-4022
2299001542 Schumacher 12volt DC Fan Speed Controller
2299001542 Schumacher 12volt DC Fan Speed Controller (Three Wire)
Price $21.90

12volt DC Fan Speed Controller (Three Wire)
2299001565 Schumacher Fan Motor 12 Volt DC Muffin Ultra Quiet
2299001565 Schumacher Fan Motor 12 Volt DC Muffin Ultra Quiet
Discontinued See 4999001229

Fan Motor provides cooling for the unit. 80mm x 80mm x 25mm 12volt DC quite design keeps noise to a minimum. May require the purchase of a 2299001542 Schumacher 12volt DC Fan Speed Controller.  Note plug end to determine correct fit. *Please note: You may have to swap plug ends from your old fan to make the new fan work.
2299001594 Schumacher Power Control Board Assembly 6 Pin New Style
2299001594 Schumacher Power Control Board Assembly 6 Pin New Style
Price $23.95

2299001594 Schumacher Power Control Board Assembly. 6 Pin Connector new style board with fan controller plug, check your unit for proper fitment before purchasing.
2299002095 Schumacher Control Dispaly Board 6 Pin New Style
2299002095 Schumacher Control Dispaly Board 6 Pin New Style
Price $24.60

2299002095 Schumacher Control Dispaly Board 6 Pin New Style. 6 Pin Connector new style board with fan controller plug, check your unit for proper fitment before purchasing.
2299002160 Schumacher Power Control Board Only 6 Pin New Style
2299002160 Schumacher Power Control Board Only 6 Pin New Style
Price $18.90

2299002160 Schumacher Power Control Board Only 6 Pin New Style (No Heat Sink). 6 Pin Connector new style board with fan controller plug, check your unit for proper fitment before purchasing. Requires 240000077 Thermal Paste to reinstall board. For complete assembly see 2299001594
2299002310 Schumacher 12volt DC Fan Speed Controller
2299002310 Schumacher 12 Volt DC Fan Speed Controller (Two Wire)
Price $18.68

12volt DC Fan Speed Controller (Two Wire New Style)
2999000980 Schumacher Power Control Board Assembly (4 Pin)
2999000980 Schumacher Power Control Board Assembly (4 Pin)
Discontinued

2999000980 Schumacher Power Control Board Assembly (4 Pin). Requires Thermal Paste to reinstall board.
3599000210 Schumacher Battery Charger Handle Round Black Steel
3599000210 Schumacher Battery Charger Handle Round Black Steel
Price $8.10

3599000210 Schumacher Battery Charger Handle Round Black Steel For SF8050, SE-1555A, SE-2158, SE-3612, SE-4020, SE-4022, SE-5010A, SES-4022, SF-4022
3599000662 Schumacher Battery Charger Handle Round Black Steel
3599000662 Schumacher Battery Charger Handle Round Black Steel
Price $8.20

3599000662 Schumacher Battery Charger Handle Round Black Steel. Replaces handle part number 3599000136.
3999000115 Circuit Breaker Circuit Breaker, Buss Fuse 32 VDC 70 Amp 3000 A Interrupt
3999000115 Circuit Breaker 32 VDC 70 Amp 3000 Amp Interrupt
Price $33.14

3999000115 Circuit Breaker Circuit Breaker, Buss Fuse 32 VDC 70 Amp 3000 A Interrupt
4999001229 Schumacher Fan Motor 12 Volt DC Muffin Ultra Quiet
4999001229 Schumacher Fan Motor 12 Volt DC Muffin Ultra Quiet
Price $17.18

Fan Motor provides cooling for the unit. 80mm x 80mm x 25mm 12volt DC Quiet design keeps noise to a minimum. May require the purchase of a 2299001542 Schumacher 12volt DC Fan Speed Controller. Note plug end to determine correct fit. *Please note: If replacing the 2299001565, you may have to swap plug ends from your old fan to make the new fan work. See 169116-001 for connectors
SE-1520 Schumacher 150 / 40 / 2 Amp Manual Automotive Starter Charger
SE-1520 Schumacher 150 / 40 / 2 Amp Manual Automotive Starter Charger
Price $106.43

SE-1520 Schumacher 150 / 40 / 2 Amp Manual Automotive Starter Charger - 150 Amp Engine Starter / 55 Amp Booster | 20 Amp Rapid Charger | 2 Amp Maintainer. For engine starting, charging and rugged use. Manual operation - must be monitored to prevent overcharging. 150A Engine Start ─ high amperage for cranking an engine with a weak or run-down battery. Heavy-duty transformer. Easy-to-read, color-coded meter. Temperature overload protection. Heavy-duty clamps ─ for a solid connection. 6 ft. power cord and output cables ─ for a total reach of 12 ft.
SE-1520-CA Schumacher 150 / 40 / 2 Amp Automatic Processor Controlled Automotive Starter Charger, CEC Approved
SE-1520-CA Schumacher 150 / 40 / 2 Amp Automatic Processor Controlled Automotive Starter Charger, CEC Approved
Price $114.32

SE-1520-CA Schumacher 150 / 40 / 2 Amp Automatic Processor Controlled Automotive Starter Charger, CEC Approved - 150 Amp Engine Starter / 20 Amp Booster /  6< >2A charger/maintainer. For engine starting, charging and rugged use. Microprocessor controlled - automatically adjusts the amperage rate to charge & maintain. Multi-stage charging for added precision, safety and battery life. Float mode monitoring - automatically maintains optimum battery charge. 150A Engine Start - high amperage for cranking an engine with a weak or run-down battery. Energy efficient Eco-friendly - meets the highest industry standards. LED indicators and button - easy to use. Heavy-duty transformer. Steel case with handle. Heavy-duty clamps - for a solid connection. 6 ft. power cord and output cables - for a total reach of 12 ft.
SE-1555A Schumacher 2/20/55/150 Amp 12 Volt Automatic Elite Automotive Battery Charger Booster Tester Maintainer
SE-1555A Schumacher 2/20/55/150 Amp 12 Volt Automatic Elite Automotive Battery Charger Booster Tester Maintainer
Price $134.12

Advanced technology automotive battery charger that utilizes a microprocessor to control both the voltage and current going to the battery to provide maximum power and the precise control needed to charge the various types of batteries on the market today; including AGM, GEL, Sealed Lead Acid, Deep Cycle, Spiral-Cell and Standard Automotive batteries. Enclosed in a tough all steel case, coated with a baked enamel finish, and the deeply-louvered vents provide for high performance and long life.


*Variations of models due to production changes and parts availability are not our responsibility *No refunds on electrical components *Service should be performed only by a qualified technician *Please read all supporting documentation and safety instructions
Schumacher SE-1555A Failure Codes and Troubleshooting Guide
SE-1555A Failure Codes
FAILURE CODE DESCRIPTION CAUSE
F01 The battery voltage is still under 10V (for a 12V battery) or 5V (for a 6V battery) after 2 hours of charging. Could be caused by trying to charge a 6 volt battery on the 12 volt charger, or the battery could be bad; have it checked or replaced.
F02 The charger cannot desulfate the battery. The battery could not be desulfated; have it checked or replaced.
F03 The battery was unable to reach the “full charged” voltage. Could be caused by trying to charge a large battery or bank of batteries on too low of a current setting, or the battery may have a shorted cell. Try again with a higher current setting, or have the battery checked or replaced.
F05 The charger was unable to keep the battery fully charged in maintain mode. The battery won’t hold a charge. Could be caused by a drain on the battery or the battery could be bad. Make sure there are no loads on the battery. If there are, remove them. If there are none, have the battery checked or replaced.
F06 The charger detected that the battery may be getting too hot (thermal runaway). The charger automatically shuts the current off if it detects the battery may be getting too hot or the battery may have a shorted cell. Have the battery checked or replaced.
If you get a failure code you have to check the connections and settings and / or replace the battery.
SE-1555A Troubleshooting Guide
PROBLEM POSSIBLE CAUSE SOLUTION
Battery clips do not spark when touched together. The charger is equipped with an auto-start feature. It will not supply current to the battery clips until a battery is properly connected. Meaning, the clips will not spark if touched together. No problem, this is a normal condition.
The charger is making an audible clicking sound. Circuit breaker is cycling. The settings may be wrong. Check the charger settings.
Battery is defective. Have the battery checked.
Shorted battery cables or clips. Circuit breaker cycles when current draw is too high. Check for shorted cables or clips and replace if necessary.
Severely discharged battery, but otherwise it is a good battery. The battery may not want to accept a charge due to a run-down state. Allow charging to continue until battery has a chance to recover sufficiently to take a charge. If more than 20 minutes, stop charging and have the battery checked.
Reverse connections at battery. Shut the charger off and correct the lead connections.
Charger makes a loud buzz or hum. Transformer laminations vibrate (buzz). No problem, this is a normal condition.
Shorted Diode Assembly or Output Rectifier Assembly (hum). Have charger checked by a qualified technician.
CONNECTED (red) LED is not on. Clips are not making a good connection to the battery. Check for poor connection to battery and frame. Make sure connection points are clean. Rock clips back and forth for a better connection.
Connections are reversed. Unplug the charger and reverse the clips.
Battery is defective (will not accept a charge). Have battery checked.
Short or no start cycle when cranking engine. Drawing more than the Engine Start rate. Crank time varies with the amount of current drawn. If cranking draws more than the Engine Start rate, crank time may be less than 3 seconds.
Failure to wait 4 minutes (240 seconds) between cranks. Wait 4 minutes of rest time before the next crank.
Clips are not making a good connection. Check for poor connection at battery and frame.
AC cord and/or extension cord is loose. Check power cord and extension cord for loose fitting plug.
No power at receptacle. Check for open fuse or circuit breaker supplying AC outlet.
The charger may be overheated. The thermal protector may have tripped and needs a little longer to reset. Make sure the charger vents are not blocked. Wait and try again.
Battery may be severely discharged. On a severely discharged battery, charge for 10 to 15 minutes in the 55 amp charge rate to help assist in cranking.
Charger will not turn on when properly connected. AC outlet is dead. Check for open fuse or circuit breaker supplying AC outlet.
Poor electrical connection. Check power cord and extension cord for loose fitting plug.
Function switch is in the OFF position. Turn Function switch ON.
The battery is connected and the charger is on, but is not charging. Clips are not making a good connection. Check for poor connection at battery and frame. Make sure connecting points are clean. Rock clips back and forth for a better connection.
The measured current is much lower than what was selected. The charger reached the maximum voltage and is reducing the current. No problem, this is a normal condition.
Schumacher User Manual Link


When a charging problem arises, make certain that the battery is capable of accepting a normal charge. Double check all connections, AC outlet for a full 120-volts, charger clips for correct polarity and the quality of the connections from the cables to the clips and from the clips to the battery system. The clips must be clean.

When a battery is very cold, partially charged or sulfated, it will not draw the full rated amperes from the charger. It is both dangerous and damaging to a battery to force higher amperage into it than it can effectively use in recharging.
