Robinair34134Z R-134A Recovery Recycling Unit Parts

Illus. # Part # Description 34134Z
1 RA19910 Low Side Gauge
2 RA19911 High Side Gauge
3 RA19584 Keypad
4 RA19393 Pressure Gauge (PSI, BAR, kPa)
5 RA19461 Thermometer, Dual Solar Panel
6 RA19343 Switch (On/Off)
7 RA15425 Station Pump, 115V, 6CFM (before 1105 SN 116630)
7 RA19902 3 CFM Vacuum Pump (After 1105 SN 116630)
8 112635 High Side Hose Spud
9 112634 Low Side Hose Spud
10 17756 Oil Drain Bottle
11 RA19901 Internal Tank Assembly
12 RA19895 Air Purge and Oil Return Solenoid, 120V, 1/16"
13 522864 Inlet Manifold (Old Style) Discontinued See RA19994
13 RA19998 Skinner Solenoid Kit (Old Style)
13 RA19819 Skinner Solenoid Rebuild Kit (Old Style)  Discontinued
13 RA19630 Skinner Solenoid Coil 115V (Old Style)
13 RA19654 Skinner Solenoid Coil 220V (Old Style)
13 RA19994 Inlet Manifold (New Style)
13 RA20030 Solenoid & Coil Assembly 115V (New Style)
14 19295 Ball Valve, 2-Way, 90 Degree
15 518659 Knob, High Side Valve
16 518658 Knob, Low Side Valve

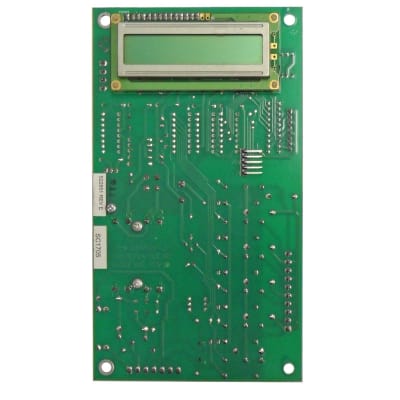

17 RA19903 Control Circuit Board (34134Z)
18 RA19875 Manifold, Valve, and Gauge Assembly
19
RA19220
523224
Expansion Valve Assembly (Requires Soldering)
System Oil Separator With Expansion Valve (Bolt In)
20 17419 Oil Inject Bottle 8 oz. For 12 oz. See 115642
21 523224 System Oil Separator & Expansion Valve Assembly
22 N/A Discharge Oil Separator
23 RA19865 Compressor Assembly (115V)

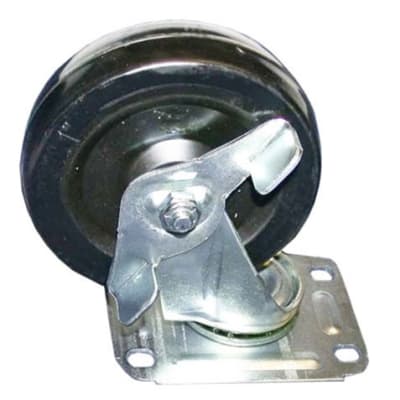

24 RA19631 Wheel, Caster, 5"
25 19823 Wheel, Pneumatic, 10"
26 34430 Filter Drier
27 122770 Power Cord
28 RA17459 Relay (115V)
29 RA17549 Circuit Breaker, 15 Amp
Not Shown 13201 Vacuum Pump Oil (Case of 12 Pints)
Not Shown 13203 Vacuum Pump Oil (Case of 12 Quarts)
Not Shown 13204 Vacuum Pump Oil (Case of 4 Gallons)
Not Shown 15369 Base and Foot Assembly (Pump)
Not Shown 18190A Low Side Service Coupler
Not Shown 18191A High Side Service Coupler
Not Shown 518280 Snubber Assembly
Not Shown 519202 Tank Hose Assembly (Liquid Port)
Not Shown 522975 Service Hose, High Side, 120" (134a)
Not Shown 522976 Service Hose, Low Side, 120" (134a)
Not Shown 523920 Tank Hose Assembly (Vapor Port)

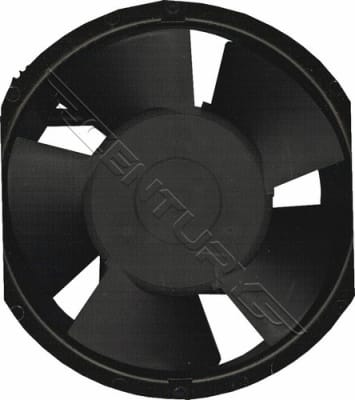

Not Shown RA17416 Fan (115V)
Not Shown RA19282 Check Valve, Replacement (Manifold Assembly)
Not Shown RA19427 High Pressure Cutout Switch
Not Shown RA19489 Compressor Start Kit (115V)
Not Shown RA19499 Pressure Relief 450 PSI
Not Shown RA19503 Check Valve, Replacement, 1/8" MP x ¼" O-Ring
Not Shown RA19603 Scale Assembly
Not Shown RA19632 Door Latch Kit
Not Shown RA19794 Fuse, 2 Amp, 250 GMA (F1)
Not Shown RA19904 Oil Injector Panel Valve
Not Shown RA19994 Inlet Solenoid Block Assy
Not Shown RA20030 Replacement Manifold Solenoid
Sort By:
Page of 1
112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each) 112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each)

112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings.

Price $1.25
112699 Robinair Oil Injector O-Ring 112699 Robinair Oil Injector O-Ring

112699 Robinair Oil Injector O-Ring

Price $2.59
114692 Robinair Oil Bottle Cap 114692 Robinair Oil Bottle Cap

114692 Robinair Oil Bottle Cap for Oil Inject / Drain bottle, for 8 - 12 ounce oil injector bottles. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Don't forget extra bottles (115642) for storing different oil types.

Price $4.80
114693 Robinair Oil Bottle Cap (Less Liner With Holes) 114693 Robinair Oil Bottle Cap (Less Liner With Holes)

114693 Robinair Oil Bottle Cap (Less Liner With Holes) For Oil Injectors

Price $3.45
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each) 114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well.

Discontinued See 40083
115642 Robinair 12oz. Oil Drain - Oil Injector Bottle 115642 Robinair 12oz. Oil Drain - Oil Injector Bottle

12oz. Graduated Oil Drain - Oil Injector Bottle. 12oz Capacity in 1/2oz graduations and 360 Milliliters in 10 Milliliter graduations, for dispensing oil via an injector or for measuring oil removed during refrigerant recovery process. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Don forget extra caps (114692) for storing different oil types.

Price $7.99
11564 Robinair 12oz. Oil Injector Bottle Kit 115642KIT Robinair 12oz. Oil Injector Storage Bottle & Cap Kit

12oz. Graduated Oil Injector Bottle. 12oz Capacity in 1/2oz graduations and 360 Milliliters in 10 Milliliter graduations. For storing alternative oils for injection & for dispensing oil via an injector or for measuring oil removed during refrigerant recovery process. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Includes cap & Level O-ring.

Price $13.42
117680 Robinair Sight Glass 15/16 - 20 UNEF 117680 Robinair Sight Glass 15/16 - 20 UNEF

117680 Robinair Oil Level Sight Glass 15/16 - 20 UNEF For 15600 15400 15434 15120 model pumps.

Price $18.62
120225 Robinair 1/4" O.D. Oil Injector Tubing 120225 Robinair 1/4" O.D. Oil Injector Tubing (By Inch)

120225 Robinair 1/4" O.D. Oil Injector Tubing. For all "Side-Winder" Style Recovery Units. Sold By The Inch. See RA20007 Robinair 1/4 Ferrule And Nut (each).

Price $0.55
121773 Robinair 1/8" Black Nylon Tube (Sold By Foot) 121773 Robinair 1/8" Black Nylon Tube (Sold By Foot)

1/8" Black Nylon Tube, used to connect lowside and highside gauge to manifold block and connect oil drain block to drain.

Price $4.90
121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each) 121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each)

121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each)

Price $2.09
121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack) 121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack)

121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack)

Price $5.70
122293 Robinair Sidewinder Front Cabinet Panel 122293 Robinair Sidewinder Front Cabinet Panel

Robinair Sidewinder Front Cabinet Panel. Fits all "Sidewinder" style carts. Installs in minutes with torx type screws (not included).

Discontinued See 544023
122745 Robinair Light Hole Cover For Sidewinder Top 122745 Robinair Light Hole Cover For Sidewinder Top

122745 Robinair Light Hole Cover For Sidewinder Top

Price $19.10
122770 Robinair Power Cord 15' Euro Colors 122770 Robinair Power Cord 15' Euro Colors

Power Cord 15' Euro Colors Power Cord 15' Supplies main power to the unit.

Price $41.87
123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve 123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve

123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve (Sold Each). Quick Seal Fittings prevent gas loss when hose is removed. DO NOT remove these fittings from tanks while pressurized.

Price $22.03
123785 Robinair Discharge Oil Coalescing Filter O-Ring 123785 Robinair Discharge Oil Coalescing Filter O-Ring

123785 Robinair Discharge Oil Coalescing Filter O-Ring

Price $3.29
123786 Robinair Discharge Oil Filter Canister O-Ring 123786 Robinair Discharge Oil Filter Canister O-Ring

123786 Robinair Discharge Oil Filter Canister O-Ring

Price $4.12
123787 Robinair Discharge Oil Coalescing Element 123787 Robinair Discharge Oil Coalescing Element

123787 Robinair Discharge Oil Coalescing Element separates oil from vapors in the discharge gas stream so it can be returned back to the compressor. This filter can become plugged when a compressor fails from a burn out or overheating due to waxes normally found in refrigerants.

Price $51.48
124023 Robinair Vacuum Pump Oil Fill Cap 124023 Robinair Vacuum Pump Oil Fill Cap

124023 Robinair Vacuum Pump Oil Fill Cap

Price $4.62
13169 Robinair 13169 Robinair Spin-On Filter Maintenance Kit With 34430 Recycling Filter Drier 13169 Robinair 13169 Robinair Spin-On Filter Maintenance Kit With 34430 Recycling Filter Drier

Contains one quick change filter-drier to be used on both R-12 and R-134a stations, and one 16 ounce bottle of our Premium High Vacuum Pump Oil. For early models using 34430 Filter-Drier (17700A, 34700, 34300-2K). See your instruction manual if you have questions about which filter-drier to use.

Price $88.73
13203 Robinair Premium High Vacuum Pump Oil Quart Bottle 13203 Robinair Premium High Vacuum Pump Oil Quart Bottle

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

Price $10.95
13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle 13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time. Robinair "High Vacuum Pump Oil" has a lower moisture content than other oils, thanks to our special packaging and handling procedures. Moisture degrades the oil’s purity, thinning it and reducing the pump’s ability to reach a deep vacuum.

Price $31.43
15369 Robinair Base & Foot Assembly For 15400 15600 15434 Series Vacuum Pumps 15369 Robinair Base & Foot Assembly For 15400 15600 15434 Series Vacuum Pumps

Base & Foot Assembly For 15400 / 15600 / 15434 Series Vacuum Pumps

Price $28.56
16103A Robinair 10 In. Pneumatic Wheel Foam Filled Replaces 19823 16103A Robinair 10 In. Pneumatic Wheel Foam Filled Replaces 19823

Robinair 10" Heavy Duty Foam Filled Pneumatic wheel with bearings for Sidewinder style Cart units. Replaces 19823. No more flat tires. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life. Additional hardware for the unit is a Cotter Pin 1/8" Diameter X 1" Long & Flat Washer 1/2" I.D.

Price $76.05
17026 Robinair Parts Kit For Manifolds And Hoses 17026 Robinair Parts Kit For Manifolds And Hoses

Parts Kit For Manifolds And Hoses Contains an assortment of the most commonly needed replacement parts for repairing manifolds, hoses and various other A/C tools.

Discontinued
17419 Robinair 8oz. Oil Drain - Oil Injector Bottle 17419 Robinair 8oz. Oil Drain - Oil Injector Bottle

8oz. Graduated Oil Drain - Oil Injector Bottle. 8oz Capacity in 1/2oz graduations and 240 Milliliters in 10 Milliliter graduations, for dispensing oil via an injector or for measuring oil removed during refrigernt recovery process.

Price $19.97
17496 Robinair Vinyl Dust Cover For 342000 347002K 34700Z 17496 Robinair Vinyl Dust Cover

Discontinued See 17492

Discontinued see RO17492
17756 Robinair Oil Drain Bottle For Sidewinder Cabinet Style Recovery Machines 17756 Robinair Oil Drain Bottle For Sidewinder Cabinet Style Recovery Machines

Oil Drain Bottle For Robinair Sidewinder Cabinet Style Recovery Machines

Price $21.72
17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack) 17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack)

17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings.

Price $12.50
18190A Robinair Lowside Service Coupler 134a 18190A Robinair Lowside Service Coupler 134a

Lowside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems.

Price $46.70
18191A Robinair Highside Service Coupler 134a 18191A Robinair Highside Service Coupler 134a

Highside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems.

Price $46.70
18192 Robinair High/Low Side Service Couplers 134a 18192 Robinair High/Low Side Service Couplers 134a

18192 Robinair High/Low Side Service Couplers 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems.

Price $85.90
19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle 19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle

19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle

Price $32.70
19150 Robinair O-Ring Kit For 18190A & 18191A Couplers 19150 Robinair O-Ring Kit For 18190A & 18191A Couplers

O-Ring Kit For 18190A & 18191A Couplers

Price $16.59
19295 Robinair 90º Ball Valve Kit 19295 Robinair 90º Ball Valve Kit

90º 1/8" female pipe thread ball valve kit replaces many older style valves with a universal panel mount valve and a complement of fittings to adapt to most retro fits on most equipment. The valve is an hermetically sealed "KANTLEAK" Style Valve for years of trouble free service and a collar lock ring for panel mounting if needed.

Price $99.95
19590 Robinair Metering Tank Adapter (Tank Add Procedure) 19590 Robinair Metering Tank Adapter (Tank Add Procedure)

This Metering Tank Adapter allows gas to be recovered via the liquid port of a virgin refrigerant cylinder with a low side coupler for faster filling of your internal cylinder. The brass fitting is metered with a small orifice to prevent refrigerant flooding preventing damage to the recovery units compressor. Required for some units.

Price $25.84
19740 Source Tank Filter For 134A units. Protect your investment from debris and harmful elements from tank manufacturing processes. Metal debris can foul solenoids causing unnecessary repairs and equipment failures. Install this filter on the hose end 19740 Robinair Source Tank Filter For 134A

19740 Source Tank Filter For 134A units. Protect your investment from debris and harmful elements from tank manufacturing processes. Metal debris can foul solenoids causing unnecessary repairs and equipment failures. Install this filter on the hose end of your tank add hose to protect your machine. 100 mesh screen is replaceable or cleanable. 1/2" Female ACME X 1/2" Male ACME fittings Installs inline of tank fill hose.

Price $65.20
Robinair 10" Heavy Duty Pneumatic wheel for Sidewinder style Cart units. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life. 19823 Robinair 10 In. Pneumatic Wheel

Robinair 10" Heavy Duty Foam Filled Pneumatic wheel for Sidewinder style Cart units. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life.

Discontinued See 16103
19830 Robinair Oil Injector Cap (Steel) & Bulkhead Fitting 19830 Robinair Oil Injector Cap (Steel) & Bulkhead Fitting

Robinair Oil Injector Cap (Steel) & the fitting is a 1/8 MPT x 5/16" press in hose capture device that also holds the cap in place. The included cap has a hole for mounting and 2 weep holes for equalization.. Replaces all earlier white plastic caps. For all "Side-Winder" Style Recovery Units.

Price $17.20
19867 Robinair Oil Injector Repair Kit 19867 Robinair Oil Injector Repair Kit

Oil Injector Repair Kit. For all "Side-Winder" Style Recovery Units. Includes all necessary components to rebuild broken or missing oil injector bottle assemblies.

Price $17.79
19882 Robinair Oil Injector Cap And Fitting Kit 19882 Robinair Oil Injector Cap And Fitting Kit

Replaces oil injector parts used on most machines with 8 oz. bottles and 5/16" diameter dip tubes. The fitting is a 1/8 MPT x 5/16" press in hose capture device that also holds the cap in place. The included cap has a hole for mounting and 2 weep holes for equalization.

Price $26.06

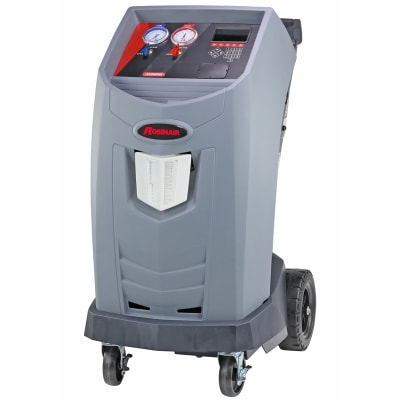

34288NI Robinair R-134a Recovery Recycling Recharging Unit 34288NI Robinair R-134a Recovery Recycling Recharging Unit

Combines simple operation with superior accuracy. The Cool-Tech 34288 recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately. Semi-automatic operation means less attention is needed! Features include, Automatic Recovery, automatic air purge, automatic oil drain, refrigerant charging, new display, vacuum function, refrigerant management system.  (Brand New Open Box Display Unit, Full factory warranty)

Price $4,299.00
34430 Robinair Recycling Filter Drier 3/8" Flare Fittings 34430 Robinair Recycling Filter Drier 3/8" Flare Fittings

The Robinair 34430 filter-drier has been specifically formulated using XH9 drier desiccant to trap acid and particulates and is formulated to remove water from the refrigerant. You must regularly change the 34430 filter-drier to assure adequate moisture and contaminant removal.

Price $75.70
34722 Robinair 9 Foot Enviro-Guard Hose Set For 34788 34288 34134Z Units 34722 Robinair 9 Foot Enviro-Guard Hose Set For 34788 34288 34134Z Units

Set of Red/Blue 9’ Enviro-Guard Hoses for Automotive R-134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant.

Price $85.90
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6) 40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor flow.

Price $14.50
518658 Robinair Knob, Low Side Valve Blue 518658 Robinair Knob, Low Side Valve Blue

518658 Robinair Knob, Low Side Valve Blue (Kantleak Style Valves)

Price $7.29
518659 Robinair Knob, High Side Valve Red 518659 Robinair Knob, High Side Valve Red

518659 Robinair Knob, High Side Valve Red (Kantleak Style Valves)

Price $7.21
522975 Robinair 116" High Side Enviro-Guard Hose Coupler Set R134A 522975 Robinair 116" High Side Enviro-Guard Hose Coupler Set R134A

522975 Robinair 116" High Side Enviro-Guard Hose Coupler Set R134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. Fittings are 7/16" Flare x 14MM Hose for Automotive R-134a.

Price $147.10
522976 Robinair 116" Low Side Enviro-Guard Hose Coupler Set R134A 522976 Robinair 116" Low Side Enviro-Guard Hose Coupler Set R134A

522976 Robinair 116" Low Side System Hose with coupler R134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. Fittings are 7/16" Flare x 14MM Hose for Automotive R-134a.

Price $147.10
523136 Robinair Faceplate Overlay 34134Z 523136 Robinair Faceplate Overlay 34134Z

523136 Robinair Faceplate Overlay 34134Z

Price $149.80
523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting 523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting

523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced.

Price $15.85
523149 Robinair Oil Injector Steel Cap 523149 Robinair Oil Injector Steel Cap

Oil Injector Cap used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced.

Price $5.85
523195 Disc See 20019 Robinair Vacumaster Oil Fill Plug 523195 Robinair Vacumaster Oil Fill Plug

VacuMaster Oil Fill Plug

Discontinued See 20019
523224 Robinair System Oil Separator With Expansion Valve And Tubes (34134Z) 523224 Robinair System Oil Separator With Expansion Valve And Tubes (34134Z)

Discontinued, See RA19220 for the Expansion Valve (requires soldering), and RA19427 for the High Pressure switch. 523224 Robinair System Oil Separator With Expansion Valve And Tubes , includes high pressure switch, tubing and seals assembled and ready to install.

Discontinued See RA19220
523302 Robinair Operating Manual for 34134Z Recovery Recycling Recharging Unit 523302 Robinair Operating Manual for 34134Z Recovery Recycling Recharging Unit

Operating Manual for 34134Z Recovery, Recycling, Recharging Unit. This is the original factory manual shipped with your unit, original print version "B". Also available as a download PDF file when you check out. You will receive both versions.

Price $21.35
523477 Robinair Discharge Condenser Heat Exchanger Coil 523477 Robinair Discharge Condenser Heat Exchanger Coil

523477 Robinair Discharge Condenser Heat Exchanger Coil

Price $89.04
539668 Robinair Suction Accumulator Canister O-Ring 539668 Robinair Suction Accumulator Canister O-Ring

539668 Robinair Suction Accumulator Canister O-Ring

Price $6.96
541384 Robinair 9 Foot Enviro-Guard High Side Hose For 34788 34288 34134Z Units 541384 Robinair 9 Foot Enviro-Guard High Side Hose For 34788 34288 34134Z Units

541384 Robinair 9 Foot Enviro-Guard High Side Hose For 34788 34288 34134Z Units. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. Fittings are 7/16" Flare x 14MM Hose for Automotive R-134a.

Price $47.84
541385 Robinair 9 Foot Enviro-Guard Low Side Hose For 34788 34288 34134Z Units 541385 Robinair 9 Foot Enviro-Guard Low Side Hose For 34788 34288 34134Z Units

541385 Robinair 9 Foot Enviro-Guard Low Side Hose For 34788 34288 34134Z Units. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. Fittings are 7/16" Flare x 14MM Hose for Automotive R-134a.

Price $47.84
544023 Robinair Front Panel Sidewinder Cart 544023 Robinair Front Panel Sidewinder Cart

544023 Robinair Front Panel Sidewinder Cart, No decals or hardware, Grey.

Price $158.30
569103 Robinair Door Latch Kit Sidewinder Cabinet 569103 Robinair Door Latch Kit Sidewinder Cabinet

Door Latch Kit Sidewinder Cabinets Device that contains spring, latch, retainer, and receptacle that holds door closed.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center. For a list of authorized service providers in your area, click here

Price $26.70
569104 Robinair Main Power Switch 569104 Robinair Main Power Switch

Main Power Switch Controls the power between the power cord and the main board.

Price $16.31
569105 Robinair Caster 5" X 2" 569105 Robinair Caster 5" X 2"

Caster 5" X 2" Swivel wheels mounted beneath unit for mobility.

Price $91.70
NB6501 PROMAX 1/4" Flare Cap & Strap NB6501 PROMAX 1/4" Flare Cap & Strap

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use.

Price $12.65
RA15425 Robinair 115v Station Mount Vacuum Pump RA15425 Robinair 115v Station Mount Vacuum Pump (17800B Only)

Recent production changes may affect your placement of this pump. The new pump was designed for 17800B cart style Recovery Recycling Units Only. For all other applications See 15548 For Replacement pumping section or RA19902 as a possible replacement.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $745.88
RA17416 Robinair Fan RA17416 Robinair Fan

Fan Used to keep the unit hermetic compressor and electrical components cool.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $104.96
RA17459 Robinair 115 Volt System Relay RA17459 Robinair 115 Volt System Relay

System Relay 115 volt coil, double pole single throw normally open switch with dual sets of 15 amp contacts. Acts as a pilot from the circuit board usually carrying higher amp loads to protect smaller relays on board. Can be used for universal applications due to the high amp contact rating.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $38.99
RA19220 Robinair Expansion Valve RA19220 Robinair Expansion Valve

Automatic Expansion Valve, Meters the flow of refrigerant to the compressor, preventing liquid slugging. This valve is set at 35 psi. 1/4" ID x 3/8 ID sweat fittings for model 34134Z recovery recycling unit. This part requires silver brazing for proper installation. We recommend 13490 Robinair Thermal Heat Shield Paste when working with sensitive valves while soldering.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $169.19
RA19282 Robinair Discharge Check Valve RA19282 Robinair Micro Check Valve

Check Valve Allows flow in one direction only and prevents pressure from back flowing into a particular path.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $20.96
RA19343 Robinair Main Power Switch RA19343 Robinair Main Power Switch

Main Power Switch Controls the power between the power cord and the main board.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See 569104
RA19393 Robinair High Side Pressure Gauge 2-3/4" RA19393 Robinair High Side Pressure Gauge 2-3/4"

High Side Gauge Reads pressure entering the high side hose.Panel mount & nuts included. 1/8" Female Pipe Thread connection. See RA19257 2-3/4" Replacement Gauge Lens.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $49.17
RA19427 Robinair High Pressure Switch RA19427 Robinair High Pressure Switch

High Pressure Switch If pressure inside the unit exceeds 435psi, the switch opens, stopping all functions of unit. NOTE: Switch opens at 435psi +/- 10psi and resets at 320psi +/- 20psi.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $103.31
RA19461 Robinair Solar Power Tank Thermometer F/C RA19461 Robinair Solar Power Tank Thermometer F/C

Solar Power Tank Thermometer (F/C) Used to monitor tank temperature. Use with PT chart to determine air percentage. You will also need a 523568 compression fitting to finish the install.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $98.75
RA19479 Robinair O-Ring For Bubble Flare Fittings (10 Pack) RA19479 Robinair O-Ring For Bubble Flare Fittings (10 Pack)

The internal fittings used in the manifold block style machines use o-ring bubble fittings instead of flare fittings and require o-ring replacements to seal properly. (10 Pack)
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $9.30
RA19489 Robinair Compressor Start Kit RA19489 Robinair Compressor Start Kit

Compressor Start Kit for older style compressors (check service for applications) .
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $120.08
RA19499 Robinair Pressure Relief Valve RA19499 Robinair Pressure Relief Valve

Pressure Relief Valve Safety valve on tank or internal storage vessel that opens if internal tank pressure exceeds 450psi. Valve has been designed, constructed and rated in accordance with ANSI/ASHRAE 15 -1994 Standard Safety Code for Mechanical Refrigeration Standards Association.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $93.20
RA19503 Robinair Check Valve 1/8 MPT X 1/4 O-Ring RA19503 Robinair Check Valve 1/8 MPT X 1/4 O-Ring

Check Valve 1/8 M Pipe X 1/4 Flare O-Ring A two port valve, that normally allows fluid (liquid or gas) to flow through it in only one direction.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $25.41
RA19504 Robinair Check Valve 1/4" O-Ring X 1/8 MPT RA19504 Robinair Check Valve 1/4" O-Ring X 1/8 MPT

Check Valve 1/4" O-Ring > 1/8 M Pipe A two port valve, that normally allows fluid (liquid or gas) to flow through it in only one direction.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $26.27
RA19520 Robinair 2Way Skinner Solenoid Rebuild Kit RA19520 Robinair 2Way Skinner Solenoid Rebuild Kit

2-Way Skinner Solenoid Rebuild Kit Used to rebuild solenoid. Includes plunger and spring.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $34.54
RA19584 Robinair Keypad / Ribbon RA19584 Robinair Keypad / Ribbon

Keypad / Ribbon User input device attached to a circuit board to select start, stop, and program functions of the unit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $71.22
RA19603 Robinair Scale Assembly RA19603 Robinair Scale Assembly

Scale Assembly Sends a signal to the main board for accurate weight readings during charging and recovery (strain gauge style).
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $205.76
RA19630 Robinair Skinner Solenoid Coil RA19630 Robinair Skinner Solenoid Coil

Skinner Solenoid Coil 115v coil that, when energized, opens solenoid valve.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $83.12
RA19631 Robinair Caster 5" X 2" RA19631 Robinair Caster 5" X 2"

Caster 5" X 2" Swivel wheels mounted beneath unit for mobility.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See 569105
RA19632 Robinair Door Latch Kit Sidewinder Cabinet RA19632 Robinair Door Latch Kit Sidewinder Cabinet

Door Latch Kit Sidewinder Cabinets Device that contains spring, latch, retainer, and receptacle that holds door closed.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See 569103
RA19794 Robinair Fuse 2 Amp .197" X .788" (5 Pack) RA19794 Robinair Fuse 2 Amp .197" X .788" (5 Pack)

Fuse 2 Amp .197" X .788" A protection device used to protect the unit against excessive current. (5 Pack)
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $22.86
RA19819 Discontinued Robinair Solenoid Rebuild Kit N/C RA19819 Robinair Solenoid Rebuild Kit N/C

Solenoid Rebuild Kit - Normally Closed Kit used to rebuild solenoid. We suggest replacing the manifold, upgrading to the new style solenoid technology. See your specific unit for details. (It is possible to use the internals from the RA19998 solenoid to rebuild your Older solenoid, simply disassemble and discard the brass body)
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19865 Robinair 110 Volt Cubigel Compressor RA19865 Robinair 115 Volt Cubigel Compressor

115 Volt Cubigel Compressor (Replaces The RA17110, RA17434, RA19458, & RA19748) Includes all hardware and electrical for a complete install. See additional plumbing retrofit kits noted for older style units.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $446.84
RA19875 Robinair Gauge Manifold And Valve Assembly RA19875 Robinair Gauge Manifold And Valve Assembly

Gauge, Manifold, And Valve Assembly Complete assembly that controls the flow in and out of unit to vehicle. Includes manifold and gauges.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $300.29
RA19893 Robinair Solenoid Rebuild Kit N/C RA19893 Robinair Solenoid Rebuild Kit N/C

Solenoid Rebuild Kit - Normally Closed Kit used to rebuild solenoid. Discontinued See RA19998. We suggest replacing the manifold, upgrading to the new style solenoid technology. See your specific unit for details.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See RA19998
RA19895 Robinair Air Purge Solenoid Assembly 120V RA19895 Robinair Air Purge Solenoid Assembly 120V

Air Purge Refrigerant Solenoid Assembly (120V) Includes brass body and coil. A normally closed solenoid that, when energized, allows flow. NOTE: RA19819 Solenoid Rebuild Kit
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See RA19896
RA19896 Robinair Solenoid Assembly 120V RA19896 Robinair Solenoid Assembly 120V

Oil Drain Solenoid -Complete Refrigerant Solenoid Assembly (120V Includes brass body and coil. Energized at the end of the recover process to drain oil. NOTE: RA19819 Solenoid Rebuild Kit
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $94.14
RA19901 Robinair Replacement Isv RA19901 Robinair Replacement ISV

Replacement Isv Storage Tank attached to, or inside of unit, used to store recovered and/or recycled refrigerant. NOTE: Used for 34134Z ONLY.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $822.06
RA19902 Robinair 3 CFM Vacuum Pump RA19902 Robinair 3 CFM Vacuum Pump

The VacuMaster Series Vacuum Pumps Provide Power and capacity for a wide range of service applications. High CFM rating for fast, thorough evacuation and two-stage rotary vane design cleans the system more thoroughly than a single-stage pump.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19903 Robinair Circuit Board RA19903 Robinair Circuit Board

Circuit Board Controls the function of the unit with input from user.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19904 Robinair Oil Injection Push Button Valve & Check Valve Kit 34134Z RA19904 Robinair Oil Injection Push Button Valve & Check Valve Kit 34134Z

Oil Injection Push Button Valve & Check Valve Kit 34134Z, threaded valve body side for panel mount applications
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $90.74
RA19910 Robinair Low Side Universal Replacement Compound Gauge -30" 0-125 PSI RA19910 Robinair Low Side Universal Replacement Compound Gauge -30" 0-125 PSI

Low Side Universal Replacement Compound Gauge -30" 0-125 PSI
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $48.47
RA19911 Robinair High Side Universal Replacement Gauge 0-500 PSI RA19911 Robinair High Side Universal Replacement Gauge 0-500 PSI

High Side Universal Replacement Gauge 0-500 Psi/Bar/kPa pressure readings.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $48.47
RA19914 Robinair Oil Injector Cap & Bulkhead Kit (20 Pack) RA19914 Robinair Oil Injector Cap & Bulkhead Kit (20 Pack)

Repair kit with Oil Injector Caps (20) and bulkhead fitting (10) Used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced. See 523148
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $60.00
RA19916 Robinair Fastener & Seal Kit For Servicing A/C Units RA19916 Robinair Fastener & Seal Kit For Servicing A/C Units

Fastener Seal and hardware kit for Robinair recovery units is a service provider must have. This kit contains 38 of the most requested hardware and small maintenance items on most Robinair machines many of which are difficult or impossible to find by themselves, including gaskets seals, bolts and screws, pneumatic fittings, door latches, Torx screws, flare gaskets and other hard to find or specific related items. 3/8 Hose Gasket, 1/4 Fl Copper gasket, O'Rings, Screws Torx, Speed Nuts, Tinnerman U Clip, 1/2 Acme Jam nut, Pneumatic Fittings, Pan Head screws, Grommets, Door Latch Receptacle, Connector, Plastite connector, Bezel 7002K / 700Z, Door Latch Spring, Injector Bulkhead Fitting, Oil Injector Cap And Bulkhead Fitting, Vacuum Pump Fill Caps, Shreader Cores. Housed in a Double sided flip top case with extra space for other items.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $495.48
RA19950 Robinair Reservoir Cover For 3 CFM Pump RA19950 Robinair Reservoir Cover For 3 CFM Pump

RA19950 Robinair Reservoir Cover For 3 CFM Station Pump. Used to repair leaking or broken end bell sight glass on RA19902 & RA20017 3CFM vacuum pumps.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $95.83
RA19994 Robinair Inlet Manifold 34134Z RA19994 Robinair Inlet Manifold 34134Z

RA19994 Robinair Inlet Manifold 34134Z. Controls Inlet, Vacuum, and Charging of refrigerant into the recovery unit. See RA20030 for individual solenoid replacements.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $416.53
RA19998 Robinair Inlet Solenoid 120v RA19998 Robinair Inlet Solenoid 120v

Inlet Solenoid 120v. Normally closed Solenoid Rebuild Kit. 115 Volt Coil, stem and o-rings. Includes brass base for older style units and should be disassembled for universal applications. Always check for proper fittment on your specific unit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $268.00
RA20008 Robinair Ferrule & Nut 1/8" (Sold Each) RA20008 Robinair 1/8" Ferrule & Nut (Sold Each)

Ferrule & Nut 1/8" (Sold Each)
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $3.85
RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal

RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $5.99
RA20030 Robinair 115v. Solenoid & Coil Assembly RA20030 Robinair 115v. Solenoid & Coil Assembly

115v. Direct acting normally closed Solenoid & Coil Assembly. Opens when energized, Closed when de-energized. Includes Coil.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $61.04
