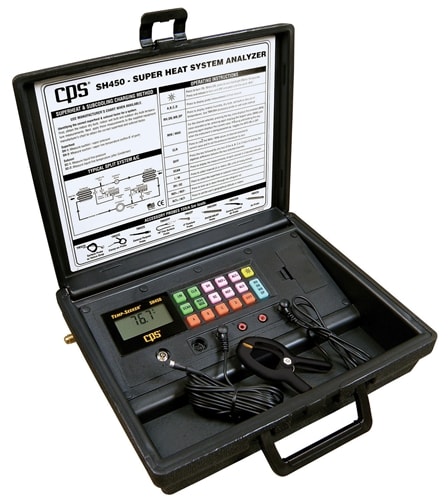

The SH450 Total Systems Analyzer is quite possibly the most versatile tool you will ever own. Measure pressure from -14.7 to 725 PSI, automatically calculate and display superheat, sub cooling, relative humidity, wet bulb, dry bulb and dew point readings in seconds. Display temperature differential between any 2 of 4 independent temperature channels. Record and display min/max readings for any channel at the touch of a button. Scan all 4 temperature channels simultaneously. The SH450 is self contained in a rugged polyethylene case with plenty of room to fit all your accessory probes.
|
SH450 Superheat / Sub-cool Systems Analyzer |
• Economical & effective alternative to digital manifolds without risk of cross contaminating systems
• Directly measures superheat, sub-cool, relative humidity, dew-point, wet bulb & dry bulb
• Temperature differential between any 2 of the 4 integrated channels
• Wide range of job specific accessory probes available
• MADE IN USA
|
SH450 Superheat / Sub-cool Specifications |
• Pressure Range -14.7 PSIG to 725.0 PSIG (-100 kPa to 5000 kPa)
• Pressure Accuracy ±1% of reading or ± 0.5 PSIG (± 3.5 kPa), whichever is greater
• Pressure Units PSIG, kPa, BAR, Hg, kg/cm2
• Proof Pressure 1000 PSI (7000 kPa)
• Temperature Accuracy ±0.4˚F / ±0.2˚C from 14.0˚F to 158˚F / -10.0˚C to 70˚C; 0.6˚F / 0.3˚C elsewhere in the range
• Dew or Bubble saturation ±1.8˚F (±1.0˚C)SH450 Thermo-Psychrometer Specifications |
• Total Measurement Temperature Rage -40˚F to +300˚F (-40˚C to +150˚C). Actual temperature range depends on the probe being used
• Temperature Resolution ±0.1˚F or ˚C
• Temperature Accuracy ±0.4˚F / ±0.2˚C from 14.0˚F to 158˚F / -10.0˚F to 70˚C; 0.6˚F / 0.3˚C elsewhere in the range
• RH Range 0 to 100%RH
• RH Accuracy (TMX3RH) ±1.8%RH from 10 to 90%RH; ± 3% elsewhere in the range
• DB Accuracy (TMX3RH) ±1.2% of reading ± 1.0˚C from -40˚F to 200˚F (± 1.2% of reading ± 0.5˚C from -40˚C to 90˚C)
|
SH450 General Specifications |
• Power Source 9V alkaline battery or optional TMX3PS AC adapter for 100 to 240VAC (40 to 60 Hz) - USA Plug
• Battery Life 30hrs. continuous use
• Automatic Power Off After 10 minutes of inactivity (no key press) or selectable continuous ON mode
• Backlit EL panel stays on for 15 seconds upon activation
• Dimensions 12" x 10" x 3" (30.5cm x 25.4cm x 7.6cm)
• Weight 3lb (1.4 kg) with probes
• Warranty 2 year
• Calibrated to NIST traceable standards
