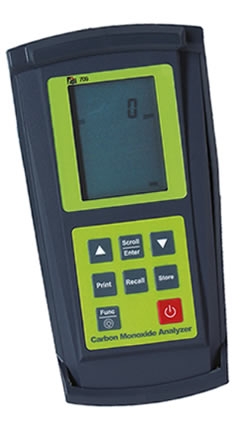

709 TPI Measure CO O2 And Differential Temp. & Pressure Calculate Co2

709 TPI Measure CO O2 And Differential Temp. & Pressure Calculate Co2

Price $494.95


Product Code: TPI709
Qty:

Description Prop65


TPI 709 Combustion Efficiency Analyzer and Differential Manometer - The carbon monoxide sensor used in TPI combustion efficiency analyzers feature an on-board filter capable of filtering NO (nitric oxide), NO2 (nitrogen dioxide) and NOX (combination of NO and NO2) to prevent cross sensitivity errors.

Use TPI analyzers to test flue gases in gas and oil fired equipment including high efficiency furnaces and condensing boilers. Measure CO, O2, and stack temperature.

Determine combustion efficiency, CO2, and CO air free. Built-in differential manometer, combustible gas detection, PC communication, data logging, and can measure NO / NOX.

Using TPI analyzers to determine combustion efficiency at the time of equipment set up minimizes call backs and can be used to verify to the home owner the value of service work by showing the increase in equipment efficiency after work is performed. Efficiency calculation can also be used to generate business by demonstrating the need to improve the efficiency of equipment or to show the benefit of purchasing new equipment with higher efficiency.

Product Features
  • All the features of the 708 PLUS high resolution 0.001 in H20 differential manometer for high efficiency and oil equipment
  • Measure CO, and temperature
  • Calculate CO2, efficiency, excess air, and CO air free

TPI 709 Flue Gas Analyzer comes complete with the following standard accessories:

  • TPI 709 Instrument
  • Rubber Boot (A765)
  • Soft Carrying Case (A768)
  • Flue Sampling Probe (A770)
  • In-Line Filter assembly installed on Flue probe (A794)
  • Temperature Probe (GK11M)
  • Mini Pump Protection Filter Assembly and spare filters (A763)
  • Exhaust Spigot (removable) (A764)
  • Instruction Manual

Model 709 Applications

  • Tuning of residential and furnaces and domestic boilers
  • Ambient and stack testing for CO
  • CO safety measurements in and around combustion sources
  • Temperature checking, including superheat and hydronic differential temperatures
  • Dual input differential manometer

Model 709 Specifications
Carbon Monoxide (CO)
Measurement
Range 0 to 10,000 ppm
Resolution 1 ppm
Accuracy +/-5ppm or 5% of reading whichever is greater
Oxygen (02) Measurement Range 0 to 25%
Resolution 0.1%
Accuracy ±0.3%
Carbon Dioxide (CO2) Range 0 to 25%
Resolution 0.1%
Calculated Value
Nitric Oxide Measurement N/A
NOX Measurement N/A
Temperature Measurement Range -40 to 1472°F, or -40 to 800°C
Resolution 1°F or °C
Accuracy (K-type) ±0.3%, ±2°F or ±1°C
Draft/Pressure
Measurement
Selectable Ranges mBar,kPa, and inH2O
Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60
inH2O to +60 in H20
Resolution 0.001 inH2O
Accuracy ±0/5% fsd
Gross/Net Efficiency Range 0 to 100%
Resolution 0.1%
Calculated Value
CO/CO2 Ratio Range 0 to 0.999
Resolution 0.001
Calculated Value
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Battery Type 1.5V AA (3)
Selectable Fuels Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal,
Anthracite Coal, Coke, Butane, Wood, Bagasse
Display Type Backlit 3 line LCD
Data Storage 50 Locations
Data Logging N/A
Print Capability Yes, via optional IR printer (A740)
PC Communication N/A
Date and Time Function 24 Hour Real Time Clock
Dimensions 200mm x 90mm x 60mm
Weight 500g
Conformity BS7927 (and the draft BS7967)
