Ingersoll-Rand 2100G 1/2" Drive Impact Wrench Repair Parts

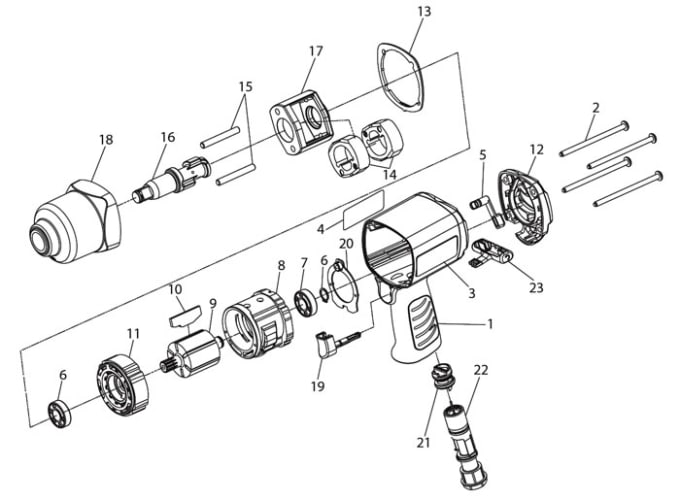

IR 2100G Impact Wrench Parts
List
Item
Part Number
Part Description
IR Equivalent
*
Housing Assembly
2100G-A40
1
Housing
-
3
Nameplate
-
4
Warning Label
-
2
Screw, Hammer Case (4 required)
2130-638
3
Nameplate
2100G-300A
4
Warning Label
2100G-301A
5
Power Regulator Assembly
2130-D249
6
8689
Retaining Ring
2131-6
7
8027
Ball Bearing (2 required)
402-22
8
Cylinder
2130-3
9
8513
Rotor
2131-53
10
2189
Rotor Vane (6 required)
2131-42A-6
11
8683
End Plate
2131-11
12
Rear Cap
2130-1012
13
Hammer Case Gasket
2130-1036
*
Impact Mechanism Kit
2100G-IMK1
13
Hammer Case Gasket
-
14
Hammer (2)
-
15
Hammer Pin (2)
-
16
Anvil Assembly
-
17
Hammer Frame
-
18
Hammer Case Assembly
2130-D1727
19
Trigger Assembly
2130-D1093
20
Gasket
2130-283
21
Reverse Valve Assembly
2130-A329
22
8128
Inlet Bushing Assembly
2131-D565
23
Reverse Button
2130-1075
*
8594
Inlet Clip Removal Tool
2131-322
Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
