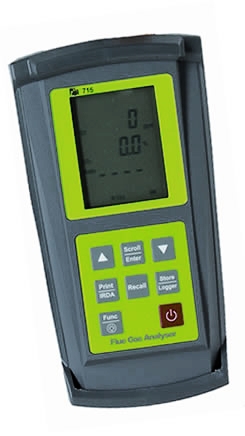

715 TPI Combustion Analyzer W/Pump Soft Case Stack Probe O2 HCO,HNO Temp,Pressure

715 TPI Combustion Analyzer W/Pump Soft Case Stack Probe O2 HCO, HNO Temp,Pressure

Price $1,735.65


Product Code: TPI715
Qty:

Description Prop65


TPI 715 High CO (above 10,000ppm carbon monoxide) Combustion Analyzer with Built-in Differential Thermometer, Differential Manometer, and NO Measurement & NOX Calculation - The carbon monoxide sensor used in TPI combustion efficiency analyzers feature an on-board filter capable of filtering NO (nitric oxide), NO2 (nitrogen dioxide) and NOX (combination of NO and NO2) to prevent cross sensitivity errors.

Use TPI analyzers to test flue gases in gas and oil fired equipment including high efficiency furnaces and condensing boilers. Measure CO, O2, and stack temperature.

Determine combustion efficiency, CO2, and CO air free. Some models include built-in differential manometer, combustible gas detection, PC communication, data logging, and can measure NO / NOX.

Use the optional A784 flow regulator to reduce the flow rate of the gas being sampled to measurable levels on high pressure systems such as gas compression engines. The A784 is included in the 715K3 kit.

All TPI analyzers feature quick and simple set up. Fast purge and the ability to perform fuel selection during start up enable tests to be performed quickly without requiring extra set-up time after initial startup. TPI analyzers also use the last selected fuel as the default setting. This feature prevents the need toperform fuel selection every time the analyzer is turned on.

Product Features
  • Measure up to 9.999% CO
  • Built-in differential thermometer
  • Measure NO (Nitric Oxide), Calculate NOx
  • Store function to save up to 10 readings
  • Calculates combustion efficiency
  • Pump driven for fast response
  • Push on fittings for fast and easy use
  • Large easy to read backlit display
  • Will not shut off if 15 ppm CO is present for increased safety
  • Four selectable fuels: Natural Gas, LPG, Light Oil, Heavy Oil
  • Optional A740 IR printer available for hard copies of test results

TPI 715 Gas Analyser comes complete with the following items as standard:

  • TPI 714 Instrument
  • Rubber Boot
  • Soft Carrying Case
  • Sampling Probe (c/w Type “K” Thermocouple)
  • In-Line Filter
  • Exhaust Spigot (removable)
  • Instruction Manual

Model 715 Applications

  • Tune combustion engines
  • Test CO levels in industrial boilers
  • Measure NO and calculate NOX

Model 715 Specifications
Carbon Monoxide (CO) Measurement Range 0 to 9.999%
Resolution .001%
Accuracy +/-5ppm or 5% of reading whichever is greater
Oxygen (02) Measurement Range 0 to 25%
Resolution 0.1%
Accuracy ±0.3%
Carbon Dioxide (CO2) Range 0 to 25%
Resolution 0.1%
Calculated Value
Nitric Oxide Measurement Range 0 to 5,000ppm Resolution 1ppm
Accuracy <100ppm: ±5ppm <1000ppm ±5% >1000ppm: ±10ppm
NOX Measurement Range 0 to 5,250
Resolution 1ppm Calculated Value
Temperature Measurement Range -40 to 1472°F, or -40 to 800°C
Resolution 1°F or °C
Accuracy (K-type) ±0.3%, ±2°F or ±1°C
Draft/Pressure Measurement Selectable Ranges mBar,kPa, and inH2O
Ranges -150 mBar to +150 mBar
-15 kPa to +15 kPa
-60 inH2O to +60 in H20
Resolution 0.001 inH2O
Accuracy ±0/5% fsd
Gross/Net Efficiency Range 0 to 100%
Resolution 0.1%
Calculated Value
CO/CO2 Ratio Range 0 to 0.999
Resolution 0.001
Calculated Value
Combustible Gas Level Indication Yes (For flue gasses)
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Charger Input Voltage 110V to 230V (50/60Hz)
Selectable Fuels Natural Gas, LPG, Light Oil, Heavy Oil
Display Type Backlit 3 line LCD
Data Storage 10 Locations
Data Logging N/A
Print Capability Yes, via optional IR printer (A740)
PC Communication N/A
Date & Time Function 24 Hour Real Time Clock
Dimensions 200mm x 90mm x 60mm
Weight 500g
Conformity BS7927 (and the draft BS7967)
