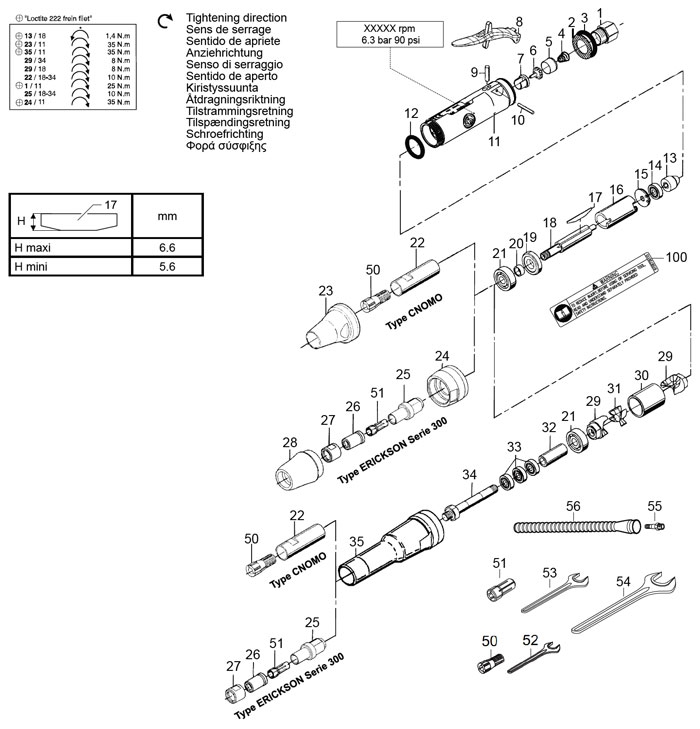

Chicago Pneumatic CP3019-25ES Die Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050542053
Air Inlet Kit
-
1
-
Adapter complete 1/4"
1
2
-
Silencer
1
3
-
O-Ring
1
B
2050542063
Throttle Kit
-
4
-
Spring valve
1
5
-
Tube inlet
1
6
-
Throttle valve
1
7
-
Seat valve
1
C
2050542073
Lever Kit
-
8
-
Throttle lever
1
9
-
Pin
1
10
-
Pin
1
D
2050542083
Rear Plate Kit
-
14
-
Ball bearing
1
15
-
Rear end plate
1
E
2050542093
Front Plate Kit
-
19
-
Front end plate
1
21
-
Ball bearing CP3019-..
1
20
-
Collar rotor
2
F
2050542103
Motor Kit
-
12
-
O-Ring
1
D
2050542083
Rear plate kit
1
E
2050542093
Front plate kit
1
16
400.134
Cylinder
1
17
434.55
Blade
3
18
426.92
Rotor
1
H
2050542113
Collet Holder Kit
-
25
-
Chuck-collet
1
G
2050541413
Collet clamp kit
1
I
2050542123
Coupling Kit (CP3019-..ES) -
29
-
Fork coupling (CP3019-..ES) 2
30
-
Spacer (CP3019-..ES) 1
31
-
Cross coupling (CP3019-..ES)
1
J
2050542143
Front Cap Kit
-
24
672.142
Front cap
1
28
225.46
Front cap protection
1
K
2050542153
Extension Kit
-
32
666.157
Sleeve spacer (CP3019-..ES) 1
33
758.114
Ball bearing (CP3019-..ES) 3
34
501.77
Spindle extension (CP3019-..ES) 1
35
566.459
Housing extension (CP3019-..ES)
1
L
2050542163
Flat Wrench Kit
-
53
6158010030
- -
54
6158010320
-
-
-
11
2050542193
Motor housing kit
1
13
457.25
Govenor (25,000 rpm) 1
13
457.26
Govenor (31,000 rpm) 1
13
457.27
Govenor (40,000 rpm) 1
13
457.28
Govenor (20,000 rpm) 1
13
6154570450
Govenor (18,000 rpm)
1
26
225.45
Bit holding gap
-
27
607.143
Nut
-
51
6155260590
Resilient collet series 300
1
55
6157040190
1/4" air hose nipple for 8mm ID hose
1
56
6158751060
Exhaust hose (L=31")
1
100
6158726110
Warning label
1
22
523.20
Chuck collet
-
23
672.138
Front cap
-
50
6155260460
CNOMO collet
-
-
2050542133
Tune-up Kit
(incl 2, 12, 17, 9, 10, 21, 33)
1
Sort By:
2050542053 Chicago Pneumatic Air Inlet Kit 2050542053 Chicago Pneumatic Air Inlet Kit

2050542053 Chicago Pneumatic Air Inlet Kit

Price $34.58
2050542063 Chicago Pneumatic Throttle Kit Cp3019 2050542063 Chicago Pneumatic Throttle Kit Cp3019

2050542063 Chicago Pneumatic Throttle Kit Cp3019

Price $20.34
2050542073 Chicago Pneumatic Lever Kit 2050542073 Chicago Pneumatic Lever Kit

2050542073 Chicago Pneumatic Lever Kit

Price $42.40
2050542103 Chicago Pneumatic Motor Kit 2050542103 Chicago Pneumatic Motor Kit

2050542103 Chicago Pneumatic Motor Kit

Price $666.66
2050542113 Chicago Pneumatic Collet Holder Kit 2050542113 Chicago Pneumatic Collet Holder Kit

2050542113 Chicago Pneumatic Collet Holder Kit

Price $132.88
2050542123 Chicago Pneumatic Coupling Kit Cp3019-..Es 2050542123 Chicago Pneumatic Coupling Kit Cp3019-..Es

2050542123 Chicago Pneumatic Coupling Kit Cp3019-..Es

Price $65.83
2050542133 Chicago Pneumatic Tune Up Kit 2050542133 Chicago Pneumatic Tune Up Kit

2050542133 Chicago Pneumatic Tune Up Kit

Price $42.40
2050542143 Chicago Pneumatic Front Cap Kit 2050542143 Chicago Pneumatic Front Cap Kit

2050542143 Chicago Pneumatic Front Cap Kit

Price $156.40
2050542153 Chicago Pneumatic Extension Kit 2050542153 Chicago Pneumatic Extension Kit

2050542153 Chicago Pneumatic Extension Kit

Price $396.79
2050542163 Chicago Pneumatic Flat Wrench Kit 2050542163 Chicago Pneumatic Flat Wrench Kit

2050542163 Chicago Pneumatic Flat Wrench Kit

Price $19.93
2050542193 Chicago Pneumatic Motor Housing Assembly 2050542193 Chicago Pneumatic Motor Housing Assembly

2050542193 Chicago Pneumatic Motor Housing Assembly

Price $301.60
225.45 Chicago Pneumatic Bit Holding Cap 225.45 Chicago Pneumatic Bit Holding Cap

225.45 Chicago Pneumatic Bit Holding Cap

Price $46.16
225.46 Chicago Pneumatic Cap 225.46 Chicago Pneumatic Cap

225.46 Chicago Pneumatic Cap

Price $48.83
400.134 Chicago Pneumatic Cylinder 400.134 Chicago Pneumatic Cylinder

400.134 Chicago Pneumatic Cylinder

Price $230.12
426.92 Chicago Pneumatic Rotor 426.92 Chicago Pneumatic Rotor

426.92 Chicago Pneumatic Rotor

Price $200.09
434.55 Chicago Pneumatic Vane 434.55 Chicago Pneumatic Vane (Each)

434.55 Chicago Pneumatic Vane

Price $10.17
457.25 Chicago Pneumatic Governor 25K 457.25 Chicago Pneumatic Governor 25K

457.25 Chicago Pneumatic Governor 25K

Price $84.79
457.26 Chicago Pneumatic Governor 457.26 Chicago Pneumatic Governor

457.26 Chicago Pneumatic Governor

Price $93.14
457.27 Chicago Pneumatic Governor 457.27 Chicago Pneumatic Governor

457.27 Chicago Pneumatic Governor

Price $95.92
457.28 Chicago Pneumatic Governor 457.28 Chicago Pneumatic Governor

457.28 Chicago Pneumatic Governor

Price $87.56
501.77 Chicago Pneumatic Shaft 501.77 Chicago Pneumatic Shaft

501.77 Chicago Pneumatic Shaft

Price $159.82
566.459 Chicago Pneumatic Housing 566.459 Chicago Pneumatic Housing

566.459 Chicago Pneumatic Housing

Price $229.31
607.143 Chicago Pneumatic Nut 607.143 Chicago Pneumatic Nut

607.143 Chicago Pneumatic Nut

Price $68.03
6154570450 Chicago Pneumatic Governor 18K 6154570450 Chicago Pneumatic Governor 18K

6154570450 Chicago Pneumatic Governor 18K

Price $116.83
6157040190 Chicago Pneumatic Hose Adaptor Barbed 1/4Npt 8D 6157040190 Chicago Pneumatic Hose Adaptor Barbed 1/4Npt 8D

6157040190 Chicago Pneumatic Hose Adaptor Barbed 1/4Npt 8D

Price $8.45
6158010030 Chicago Pneumatic Spanner 11Mm. A/F 6158010030 Chicago Pneumatic Spanner 11Mm. A/F

6158010030 Chicago Pneumatic Spanner 11Mm. A/F

Price $12.39
6158010320 Chicago Pneumatic Spanner 17Mm. A/F 6158010320 Chicago Pneumatic Spanner 17Mm. A/F

6158010320 Chicago Pneumatic Spanner 17Mm. A/F

Price $15.51
6158726110 Chicago Pneumatic Warning Label 6158726110 Chicago Pneumatic Warning Label

6158726110 Chicago Pneumatic Warning Label

Price $10.12
6158751060 Chicago Pneumatic Exhaust Hose 6158751060 Chicago Pneumatic Exhaust Hose

6158751060 Chicago Pneumatic Exhaust Hose

Price $39.40
666.157 Chicago Pneumatic Spacer 666.157 Chicago Pneumatic Spacer

666.157 Chicago Pneumatic Spacer

Price $41.68
672.138 Chicago Pneumatic Plug 672.138 Chicago Pneumatic Plug

672.138 Chicago Pneumatic Plug

Price $76.45
672.142 Chicago Pneumatic Plug 672.142 Chicago Pneumatic Plug

672.142 Chicago Pneumatic Plug

Price $127.72
758.114 Chicago Pneumatic Bearing 8X16X5 Type 688Zz 758.114 Chicago Pneumatic Bearing 8X16X5 Type 688Zz

758.114 Chicago Pneumatic Bearing 8X16X5 Type 688Zz

Price $23.65
CP3019-25ES Chicago Pneumatic 1/4" (6.35mm) Collet 0.5Hp Extended Length Die Grinder CP3019-25ES Chicago Pneumatic 1/4" (6.35mm) Collet 0.5Hp Extended Length Die Grinder

CP3019-25ES Chicago Pneumatic 1/4" (6.35mm) Collet 0.5Hp Extended Length Die Grinder - Industrial angle die grinder. Optimal productivity. Highest durability in demanding applications up to 2000 hours maintenance intervals. Superior Ergonomics.

Price $700.42
