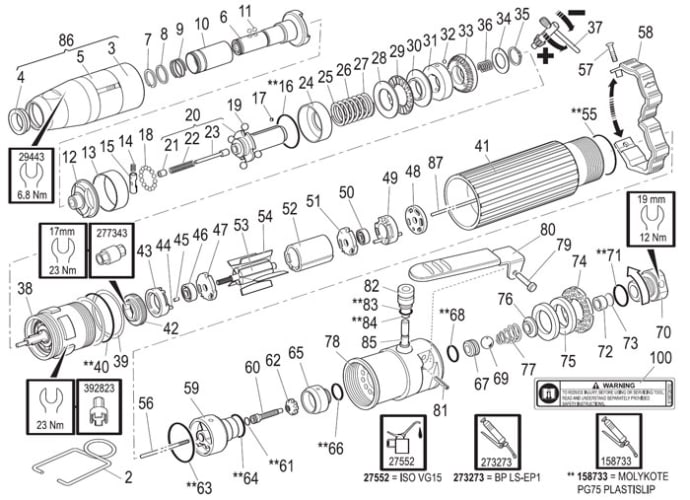

Chicago Pneumatic CP2008 Screwdriver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
2
|
2050482253 |
Suspension bail
|
1
|
3
|
2050480063 |
Clutch case
|
1
|
4
|
2050481463 |
Bearing, spindle
|
2
|
5
|
76713
|
Clip, spring
|
1
|
6
|
370693
|
Bit Holder, 1/4" Hex
|
1
|
7
|
2050481663 |
Circlip
|
1
|
8
|
2050481933 |
Spacer
|
1
|
9
|
301013
|
Spring
|
1
|
10
|
2050481653 |
Sleeve, quick release coupling
|
1
|
11
|
280313
|
Ball, steel
|
2
|
12
|
301273
|
Clutch cam
|
1
|
13
|
2050481593 |
Retaining sleeve
|
1
|
14
|
307123
|
Spring |
1
|
15
|
2050481583 |
Latch pin
|
1
|
16
|
239753
|
O-Ring
|
1
|
17
|
301283
|
Roller
|
1
|
18
|
72228
|
Ball, 3/32
|
14
|
19
|
66868
|
Ball, 5/32
|
4
|
20
|
301163
|
Clutch spindle
|
1
|
21
|
301193
|
Plug
|
1
|
22
|
301203
|
Spring |
1
|
23
|
301183
|
Push rod
|
1
|
24
|
301253
|
Ball cup
|
1
|
25
|
179133
|
Spring (black)
|
1
|
26
|
179923
|
Spring (white)
|
1
|
27
|
304853
|
Spring (natural)
|
1
|
28
|
301313
|
Thrust washer
|
1
|
29
|
301303
|
Thrust race
|
1
|
30
|
301213
|
Thrust washer |
1
|
31
|
2050481573 |
Lock ring
|
1
|
32
|
72408
|
Ball, 1/8"
|
3
|
33
|
301223
|
Adjusting ring
|
1
|
34
|
2050481503 |
Washer
|
1
|
35
|
42353
|
Circlip
|
1
|
36
|
252563
|
Spring |
1
|
37
|
29932
|
Chuck key
|
1
|
38
|
2050481233 |
Gearbox module (1100 rpm) complete
|
1
|
39
|
2050481763 |
Spacer
|
2
|
40
|
380763
|
O-Ring |
1
|
41
|
2050480193 |
Case, motor
|
1
|
42
|
2050481673 |
Nut
|
1
|
43
|
2050481523 |
Housing, front bearing
|
1
|
44
|
259953
|
Pin, drive
|
1
|
45
|
2050481703 |
Location pin
|
1
|
46
|
33433
|
Single row ball journal
|
1
|
47
|
2050481543 |
Plate, front bearing
|
1
|
48
|
2050481603 |
Transfer plate
|
1
|
49
|
459313
|
Housing, rear bearing
|
1
|
50
|
8843
|
Bearing
|
1
|
51
|
2050481533 |
Plate, rear bearing
|
1
|
52
|
285503
|
Cylinder
|
1
|
53
|
391613
|
Rotor, 9T
|
1
|
54
|
461613
|
Blade, rotor dry
|
5
|
55
|
402993
|
O-Ring |
1
|
56
|
392833
|
Push rod
|
1
|
57
|
393053
|
Screw, self tapping
|
1
|
58
|
392003
|
Reverse valve actuator
|
1
|
59
|
457903
|
Reverse valve
|
1
|
60
|
455573
|
Valve stem
|
1
|
61
|
320413
|
O-Ring |
1
|
62
|
455583
|
Valve top
|
1
|
63
|
314943
|
O-Ring |
1
|
64
|
402253
|
O-Ring |
1
|
65
|
393103
|
Connecting tube
|
1
|
66
|
41513
|
O-Ring |
1
|
67
|
444713
|
Valve seat
|
1
|
68
|
250913
|
O-Ring |
1
|
69
|
15043
|
Ball |
1
|
70
|
393643
|
Adapter
|
1
|
71
|
392493
|
O-Ring |
1
|
72
|
392953
|
Retainer
|
1
|
73
|
176303
|
Filter
|
1
|
74
|
316223
|
Exhaust ring
|
1
|
75
|
395123
|
Silencing felt
|
2
|
76
|
2050481953 |
Guide
|
1
|
77
|
455603
|
Spring |
1
|
78
|
2050480023 |
Control top
|
1
|
79
|
235853
|
Rivet
|
1
|
80
|
2050480073 |
Lever
|
1
|
81
|
311523
|
Pin, spring
|
1
|
82
|
2050481643 |
Guide
|
1
|
83
|
216463 |
O-Ring |
1
|
84
|
216473 |
O-Ring |
1
|
85
|
2050481923 |
Rod, valve
|
1
|
86
|
2050480823 |
Clutch case module
|
1
|
87
|
2050481723
|
Push rod
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
