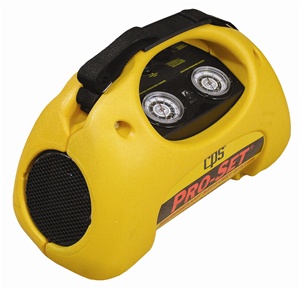

CR710 CPS Cyclone Oil-Less Refrigerant Recovery Unit With Overfill Safety Installed

CR710 CPS Cyclone Oil-Less Refrigerant Recovery Unit With Overfill Safety Installed



Product Code: CPSCR710
Discontinued See TR700

Description Technical Specs

Same as our popular CR700 but now with safety overfill protection already installed. CPS has integrated its latest technology and incorporated state of the art features while improving reliability and speed. The CR700 incorporates an Exclusive CPS Designed Patent Pending compressor that maximizes speed in both direct liquid and direct vapor recovery. The unit is equipped with a high airflow and high efficiency condensing system to maximize vapor recovery speed. The CR700 also incorporates an automatic Low Pressure shut off switch. The CR700 is designed for servicing commercial and residential refrigeration systems. Simply follow the quick start guide and turn it on. Once the recovery is complete, simply turn the center valve to the SELFCLEARING position. Now the unit is ready for the next type of refrigerant. The PROSET CR700 series utilizes a 1 hp (0.85kW) patent pending oil-less compressor, non-restrictive piston manifold valves, and high capacity condensing system.
THE HEART OF THE CR700
• Powerful 1HP oil-less reciprocating recovery compressor.
• Oversized piston head & cylinder combine with a *450%. larger discharge port.
• No suction valve eliminates failures caused by liquid slugs.
• Heavy duty components with special long-lasting composite seals.
• Compact modular design with easy access 4 bolt latching system
• Complete compressor rebuilt in minutes
• Externally serviceable valves and gauges
• Integrates component moorings for quiet operation.
• Less components equals more reliability.
Powerful 1 HP oil-less reciprocating recovery compressor
oversized piston head
450% larger discharge port

CPS CR700 Push Pull Recovery RateCPS CR700 Direct Vapor Recovery Rate

CPS CR700 Vapor Recovery RateCPS CR700 Direct Liquid Recovery Rate
Above information derived from independent test results viewable at http://www.ul.com and http://ww.ari.org
Ritchie,ATP,Inficon/VORTEX,BACHARACH/STINGER,RefTec/MicroVAC are all registered trademarks of the respective company
Above Ratings @ 60Hz, Reduce by 15% for 50Hz
Product Features
  • Fastest overall ARI certified recovery rates in it's class
  • Powerful 1 hp oil-less reciprocating recovery compressor
  • Exceptional compressor, condensing & cooling systems allow fast recovery in high temperature environments
  • Automatic low pressure shut-off feature turns unit off when recovery is completed
  • Rugged high density double walled plastic housing with easy view top mounted controls
  • R-410A ready with 550 psi high pressure shut-off switch
  • Built-in suction filter located under suction port
  • Worldwide patents pending
  • 115V, psi/kgcm² guage
  • Ergonomic well balanced design for easy transport including shoulder strap
  • Weighs only 36 lbs./16.2 kg
Additional Features
  • Powerful 1 HP oil-less reciprocating recovery compressor
  • Oversized Piston head & cylinder combine with a 450% larger discharge port
  • No suction valve eliminates failures caused by liquid slugs
  • Heavy duty components with special long-lasting composite seals
  • Compact modular design with easy access 4 bolt latch system
  • Externally serviceable valves and gauges
  • Integrates component moorings for quite operation
  • Less components equals more reliability
High Performance Features
  • “On the Fly ” SELF-CLEARING" valve. No need to turn off the unit when switching from recovery to self-clearing
  • On board SUCTION and DISCHARGE gauges
  • 0 to 55 bar (800-psig) discharge gauge to handle R-410A
  • Small physical size
  • Automatic Low Pressure cutout switch
  • Integrated easy to use carrying handle and Safety bar
  • 550 psig High Pressure cutout switch
  • Easy and secure filter accesses. No dangling filters to be damaged
  • Replaceable or cleanable filter cartridge
  • Suction and Discharge shut-off valves are easy to service if replacement required
  • Heavy-duty powder coated aluminum chassis surrounded by a tough High-Density Polyethylene case
  • Maintenance free Oil-less compressor
  • Optional tank overfill sensor cord kit
