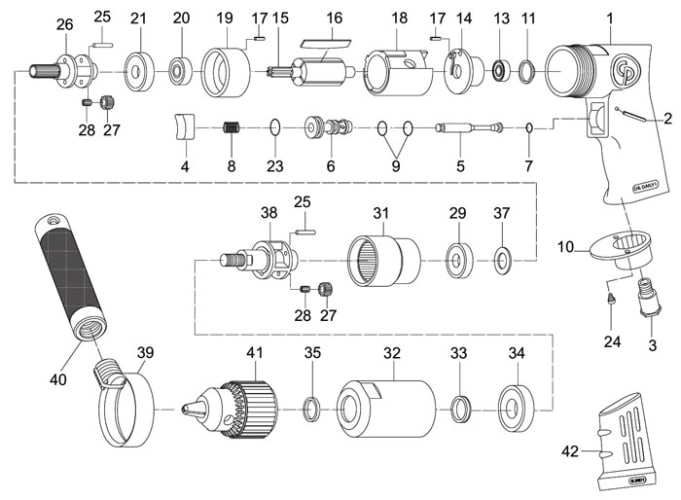

CP9286 Air Drill Repair Parts


Index
No.
 Part No.
Description
No.
Req'd
1
2050485093
Motor Housing
1
2
2050485663
Spring Pin
1
3
2050485103
Air Inlet
1
4
2050486783
Trigger
1
5
2050485113
Valve Stem
1
6
2050485123
Valve Bushing
1
7
2050485133
O-Ring
1
8
2050485143
Valve Spring
1
9
2050485153
O-Ring
2
10
2050485163
Exhaust Diffuser
1
11
2050484113
Cap
1
13
2050486803
Ball Bearing
1
14
2050485173
End Plate
1
15
2050485233
Rotor
1
16
2050484273
Rotor Blade Set
4
17
2050485533
Spring Pin
2
18
2050485193
Cylinder
1
19
2050485203
Front End Plate
1
20
2050486823
Ball Bearing
1
21
2050486833
Ball Bearing
1
23
2050485213
O-Ring
1
24
2050484193
Screw
2
25
2050485243
Pin
5
26
2050485253
Planet Cage
1
27
2050485263
Planet Gear
5
28
2050496753
Needle Bearing
5
29
2050486903
Ball Bearing
1
31
2050485283
Internal Gear
1
32
2050485293
Front Housing
1
33
2050485303
Seal
1
34
2050486913
Ball Bearing
1
35
2050485223
Chuck Spacer
1
37
2050485313
Washer
1
38
2050485323
Planet Cage
1
39
2050485333
Retainer
1
40
2050485343
Handle
1
41
2050486963
Industrial Key Chuck (1/2") & Key (not shown)
1
42
2050485993
Rubber Grip
1
100
6158727980
Warning Label (not shown)
1
-
2050503753 Tune-Up Kit
(Incl: 7, 9, 13, 16, 20, 21, 23, 28, 29, 34)
Sort By:
2050484113 Chicago Pneumatic Cap 2050484113 Chicago Pneumatic Cap

2050484113 Chicago Pneumatic Cap

Price $5.34
2050484193 Chicago Pneumatic Screw 2050484193 Chicago Pneumatic Screw

2050484193 Chicago Pneumatic Screw

Price $5.41
2050484273 Chicago Pneumatic Rotor Blades 2050484273 Chicago Pneumatic Rotor Blades

2050484273 Chicago Pneumatic Rotor Blades

Price $11.05
2050485093 Chicago Pneumatic Motor Housing 2050485093 Chicago Pneumatic Motor Housing

2050485093 Chicago Pneumatic Motor Housing

Discontinued
2050485103 Chicago Pneumatic Air Inlet 2050485103 Chicago Pneumatic Air Inlet

2050485103 Chicago Pneumatic Air Inlet

Price $8.68
2050485113 Chicago Pneumatic Valve Stem 2050485113 Chicago Pneumatic Valve Stem

2050485113 Chicago Pneumatic Valve Stem

Price $7.16
2050485123 Chicago Pneumatic Valve Bushing 2050485123 Chicago Pneumatic Valve Bushing

2050485123 Chicago Pneumatic Valve Bushing

Price $8.68
2050485133 Chicago Pneumatic O Ring 2050485133 Chicago Pneumatic O Ring

2050485133 Chicago Pneumatic O Ring

Price $5.64
2050485143 Chicago Pneumatic Valve Spring 2050485143 Chicago Pneumatic Valve Spring

2050485143 Chicago Pneumatic Valve Spring

Price $5.34
2050485153 Chicago Pneumatic O Ring 2050485153 Chicago Pneumatic O Ring

2050485153 Chicago Pneumatic O Ring

Price $5.34
2050485163 Chicago Pneumatic Exhaust Diffuser 2050485163 Chicago Pneumatic Exhaust Diffuser

2050485163 Chicago Pneumatic Exhaust Diffuser

Price $5.41
2050485173 Chicago Pneumatic End Plate 2050485173 Chicago Pneumatic End Plate

2050485173 Chicago Pneumatic End Plate

Price $11.07
2050485193 Chicago Pneumatic Cylinder 2050485193 Chicago Pneumatic Cylinder

2050485193 Chicago Pneumatic Cylinder

Price $38.35
2050485203 Chicago Pneumatic Front End Plate 2050485203 Chicago Pneumatic Front End Plate

2050485203 Chicago Pneumatic Front End Plate

Price $12.62
2050485213 Chicago Pneumatic O Ring 2050485213 Chicago Pneumatic O Ring

2050485213 Chicago Pneumatic O Ring

Price $5.64
2050485223 Chicago Pneumatic Chuck Spacer 2050485223 Chicago Pneumatic Chuck Spacer

2050485223 Chicago Pneumatic Chuck Spacer

Price $5.41
2050485233 Chicago Pneumatic Rotor 2050485233 Chicago Pneumatic Rotor

2050485233 Chicago Pneumatic Rotor

Price $39.80
2050485243 Chicago Pneumatic Pin 2050485243 Chicago Pneumatic Pin

2050485243 Chicago Pneumatic Pin

Price $8.63
2050485253 Chicago Pneumatic Planet Cage 2050485253 Chicago Pneumatic Planet Cage

2050485253 Chicago Pneumatic Planet Cage

Discontinued
2050485263 Chicago Pneumatic Planet Gear 2050485263 Chicago Pneumatic Planet Gear

2050485263 Chicago Pneumatic Planet Gear

Price $66.28
2050485283 Chicago Pneumatic Internal Gear 2050485283 Chicago Pneumatic Internal Gear

2050485283 Chicago Pneumatic Internal Gear

Price $38.31
2050485293 Chicago Pneumatic Front Housing 2050485293 Chicago Pneumatic Front Housing

2050485293 Chicago Pneumatic Front Housing

Price $29.49
2050485303 Chicago Pneumatic Seal 2050485303 Chicago Pneumatic Seal

2050485303 Chicago Pneumatic Seal

Price $5.41
2050485313 Chicago Pneumatic Washer 2050485313 Chicago Pneumatic Washer

2050485313 Chicago Pneumatic Washer

Price $5.34
2050485323 Chicago Pneumatic Planet Cage 2050485323 Chicago Pneumatic Planet Cage

2050485323 Chicago Pneumatic Planet Cage

Discontinued
2050485333 Chicago Pneumatic Retainer 2050485333 Chicago Pneumatic Retainer

2050485333 Chicago Pneumatic Retainer

Price $26.55
2050485343 Chicago Pneumatic Handle 2050485343 Chicago Pneumatic Handle

2050485343 Chicago Pneumatic Handle

Price $14.62
2050485533 Chicago Pneumatic Spring Pin 2050485533 Chicago Pneumatic Spring Pin

2050485533 Chicago Pneumatic Spring Pin

Price $5.41
2050485663 Chicago Pneumatic Spring Pin 2050485663 Chicago Pneumatic Spring Pin

2050485663 Chicago Pneumatic Spring Pin

Price $5.41
2050485993 Chicago Pneumatic Rubber Grip 2050485993 Chicago Pneumatic Rubber Grip

2050485993 Chicago Pneumatic Rubber Grip

Price $15.77
2050486783 Chicago Pneumatic Trigger 2050486783 Chicago Pneumatic Trigger

2050486783 Chicago Pneumatic Trigger

Price $8.63
2050486833 Chicago Pneumatic Ball Bearing (6001) 2050486833 Chicago Pneumatic Ball Bearing (6001)

2050486833 Chicago Pneumatic Ball Bearing (6001)

Price $17.66
2050486903 Chicago Pneumatic Ball Bearing (6002zz 2050486903 Chicago Pneumatic Ball Bearing (6002zz

2050486903 Chicago Pneumatic Ball Bearing (6002zz

Price $25.04
2050486963 Chicago Pneumatic Industrial Key Chuck 2050486963 Chicago Pneumatic Industrial Key Chuck

2050486963 Chicago Pneumatic Industrial Key Chuck

Price $75.93
2050496753 Chicago Pneumatic Needle Bearing (For Rp9286) 2050496753 Chicago Pneumatic Needle Bearing (For Rp9286)

2050496753 Chicago Pneumatic Needle Bearing (For Rp9286)

Price $12.65
2050503753 Chicago Pneumatic Tune Up Kit - Rp9288 & Rp9286 2050503753 Chicago Pneumatic Tune Up Kit - Rp9288 & Rp9286

2050503753 Chicago Pneumatic Tune Up Kit - Rp9288 & Rp9286

Price $135.63
CP9286C Chicago Pneumatic 1/2" Drill CP9286C Chicago Pneumatic 1/2" Drill

CP9286C 1/2" Drill - This 1/2" air drill has a 0.5 horse power motor that provides up to 14.7 ft-lbs of torque, with the exhaust vented out of the handle, also there is an ergonomic side handle for increased stability and comfort and it has an industrial Jacobs chuck.

Price $225.31
