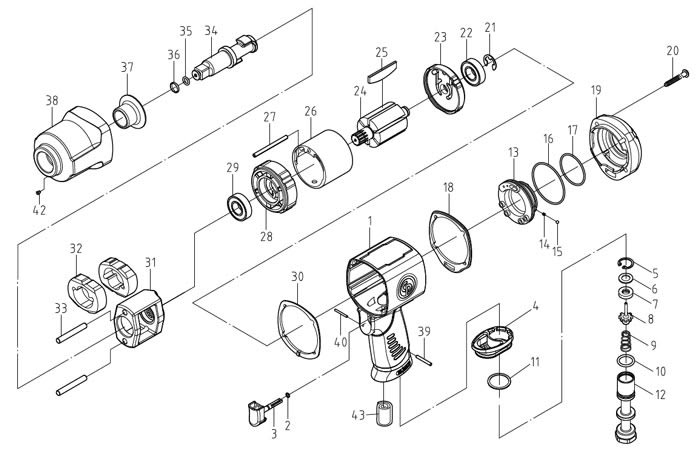

CP7748C 1/2" Impact Wrench Repair Parts


Index
No.
 Part No.
Description
No.
Req'd
31
8950240454 Hammer Cage
1
32
8950240294 Hammer
2
33
8950240456 Pin Set
1
-
8940169489 Housing Kit
1

Housing
1
2

O-Ring
1
3

Trigger 1
4

Exhaust Deflector
1
5

Retaining Ring 1
6

Washer
1
7

Valve Seat
1
8

Valve Stem
1
9

Spring
1
10

O-Ring 1
11

Washer
1
12

Air Inlet
1
39 / 40

Spring Pin
1
43

Muffler
1
-
8940169802 Trigger Kit
2

O-Ring 1
3

Trigger 1
40

Spring Pin 1
-
8950212133 Inlet Kit
4

Exhaust Deflector
1
10

O-Ring 1
11

Washer
1
12

Air Inlet
1
39

Spring Pin 1
43

Muffler
1
-
8950212134 Valve Kit
5

Retaining Ring 1
6

Washer
1
7

Valve Seat
1
8

Valve Stem
1
9

Spring
1
43

Muffler
1
-
8940169490
Reverse Valve Kit
13

Reverse Valve
1
14

Spring
1
15

Steel Ball 1
16

O-Ring 1
17

O-Ring 1
-
8940169491 Cover Kit
18

Gasket
1
19

Housing Cover
1
20

Screw
4
-
8950221422 Motor Kit
21

Retaining Ring 1
22

Ball Bearing 1
23

End Plate
1
24
8950221418 Rotor
1
25
8950221419 Rotor Blade 7
26
8950221420 Cylinder
1
27

Spring Pin
1
28

End Plate
1
29

Ball Bearing 1
-
8950221423 End Plate Kit
21

Retaining Ring 1
22

Ball Bearing 1
23

End Plate
1
-
8950221424 End Plate Kit
28

End Plate
1
29

Ball Bearing 1
-
8950240460 Anvil Kit
34

Anvil 1/2"
1
35

O-Ring 1
36

Anvil Collar 1/2" 1
-
8940169492 Anvil Kit Extended
34

Anvil 1/2" Extended
1
35

O-Ring 1
36

Anvil Collar 1/2" 1
-
8950251279 Anvil Collar Kit (5)
35

O-Ring 5
36

Anvil Collar 1/2"
5
-
8940169493 Hammer Case Kit
30

Gasket
1
37

Anvil Bushing
1
38

Hammer Case
1
42

Grease Fitting
1
-
8950280019 Small Parts Kit
10

Washer
1
14

Spring
1
27

Spring Pin 1
37

Anvil Bushing
1
43

Muffler
1
42

Grease Fitting
1
-
8950280020 Gasket Kit
30

Gasket 1
20

Screw
4
18

Gasket
1
-
8940169810 Tune-Up Kit
10

O-Ring 1
5

Retaining Ring 1
2

O-Ring 1
15

Steel Ball
1
16

O-Ring 1
17

O-Ring 1
21

Retaining Ring
1
25
8950221419 Rotor Blade
7
29

Ball Bearing 1
22

Ball Bearing
1
39

Spring Pin 1
40

Spring Pin 1
Sort By:
8940169489 Chicago Pneumatic Housing Kit 8940169489 Chicago Pneumatic Housing Kit

8940169489 Chicago Pneumatic Housing Kit

Price $98.75
8940169491 Chicago Pneumatic Cover Kit 8940169491 Chicago Pneumatic Cover Kit

8940169491 Chicago Pneumatic Cover Kit

Discontinued
8940169492 Chicago Pneumatic Anvil Kit For Cp7748-2 8940169492 Chicago Pneumatic Anvil Kit For Cp7748-2

8940169492 Chicago Pneumatic Anvil Kit For Cp7748-2

Price $101.19
8940169493 Chicago Pneumatic Hammer Case Kit 8940169493 Chicago Pneumatic Hammer Case Kit

8940169493 Chicago Pneumatic Hammer Case Kit

Price $55.83
8940169802 Chicago Pneumatic Trigger Kit 8940169802 Chicago Pneumatic Trigger Kit

8940169802 Chicago Pneumatic Trigger Kit

Price $17.71
8940169810 Chicago Pneumatic Tune Up Kit 8940169810 Chicago Pneumatic Tune Up Kit

8940169810 Chicago Pneumatic Tune Up Kit

Price $17.50
8940171697 Chicago Pneumatic Reverse Valve Rear Cover Kit 8940171697 Chicago Pneumatic Reverse Valve Rear Cover Kit

8940171697 Chicago Pneumatic Reverse Valve Rear Cover Kit

Price $34.28
8950212133 Chicago Pneumatic Inlet Kit 8950212133 Chicago Pneumatic Inlet Kit

8950212133 Chicago Pneumatic Inlet Kit

Price $60.45
8950212134 Chicago Pneumatic Valve Kit 8950212134 Chicago Pneumatic Valve Kit

8950212134 Chicago Pneumatic Valve Kit

Price $16.14
8950221418 Chicago Pneumatic Rotor 8950221418 Chicago Pneumatic Rotor

8950221418 Chicago Pneumatic Rotor

Price $79.63
8950221419 Chicago Pneumatic Rotor Blade Set (7) 8950221419 Chicago Pneumatic Rotor Blade Set (7)

8950221419 Chicago Pneumatic Rotor Blade Set (7)

Price $16.20
8950221420 Chicago Pneumatic Cylinder 8950221420 Chicago Pneumatic Cylinder

8950221420 Chicago Pneumatic Cylinder

Price $35.77
8950221422 Chicago Pneumatic Motor Kit 8950221422 Chicago Pneumatic Motor Kit

8950221422 Chicago Pneumatic Motor Kit

Price $304.27
8950221423 Chicago Pneumatic End Plate Kit 8950221423 Chicago Pneumatic End Plate Kit

8950221423 Chicago Pneumatic End Plate Kit

Price $46.02
8950221424 Chicago Pneumatic End Plate Kit 8950221424 Chicago Pneumatic End Plate Kit

8950221424 Chicago Pneumatic End Plate Kit

Price $52.20
8950240294 Chicago Pneumatic Hammer 8950240294 Chicago Pneumatic Hammer

8950240294 Chicago Pneumatic Hammer

Discontinued
8950240454 Chicago Pneumatic Hammer Cage 8950240454 Chicago Pneumatic Hammer Cage

8950240454 Chicago Pneumatic Hammer Cage

Price $125.35
8950240456 Chicago Pneumatic Pin 8950240456 Chicago Pneumatic Pin

8950240456 Chicago Pneumatic Pin

Price $23.45
8950240460 Chicago Pneumatic Anvil Kit For Cp7748 8950240460 Chicago Pneumatic Anvil Kit For Cp7748

8950240460 Chicago Pneumatic Anvil Kit For Cp7748

Price $80.15
8950251279 Chicago Pneumatic Anvil Collar Kit 8950251279 Chicago Pneumatic Anvil Collar Kit

8950251279 Chicago Pneumatic Anvil Collar Kit

Price $9.10
8950280019 Chicago Pneumatic Small Parts Kit 8950280019 Chicago Pneumatic Small Parts Kit

8950280019 Chicago Pneumatic Small Parts Kit

Price $19.16
8950280020 Chicago Pneumatic Gasket Kit 8950280020 Chicago Pneumatic Gasket Kit

8950280020 Chicago Pneumatic Gasket Kit

Price $19.18
CP7748 Chicago Pneumatic 1/2" Impact Wrench CP7748 Chicago Pneumatic 1/2" Impact Wrench

CP7748 1/2" Impact Wrench - This 1/2" square drive impact wrench has features like: one handed forward /reverse controls, full power in reverse, three power settings, aluminum clutch and rear housings and a full teasing trigger. Now with 960 ft/lbs (1400 Nut Loosening Torque), more compact size (14% shorter), more durable wear parts (hard anodized end plates & hard chromium aluminum cylinder), and a very unique 1 handed reverse system.

Price $250.00
