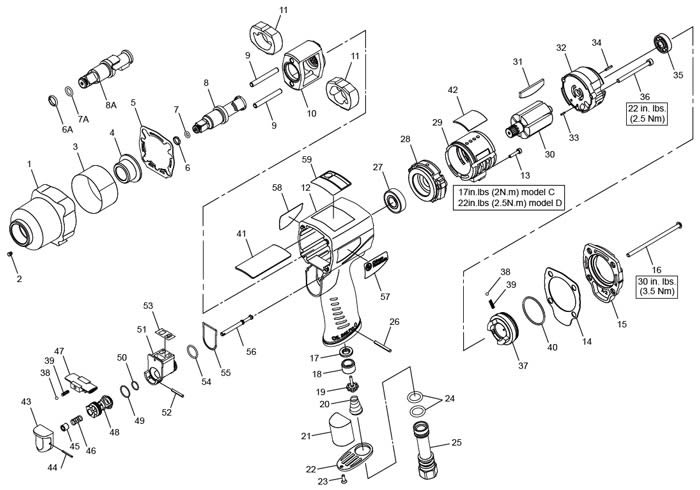

CP7739 1/2" Impact Wrench Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
-
|
8940168733
|
Clutch
Housing Kit
|
1
|
|
Housing - Clutch
|
1
|
2
|
|
Fitting - Grease
|
1
|
3
|
|
Steel - Ring
|
1
|
4
|
|
Bushing - Clutch
|
1
|
5
|
|
Gasket - Clutch
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168730
|
3/8" Anvil
Kit (CP7729)
|
6
|
|
Retainer - Socket
|
1
|
7
|
|
O-Ring
|
1
|
8
|
|
Anvil - 3/8"
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168731
|
1/2" Anvil
Kit (CP7739)
|
6A
|
|
Retainer - Socket
|
1
|
7A
|
|
O-Ring
|
1
|
8A
|
|
Anvil - 1/2"
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168732
|
Impact Kit
|
9
|
|
Pin - Hammer Cage
|
2
|
10
|
|
Cage - Hammer
|
1
|
11
|
2050520623
|
Hammer
|
2
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168734
|
Motor Kit
- model C
|
-
|
8940168943
|
Motor Kit
- model D
|
13
|
|
Bolt - Hex. Soc. Hd.
|
1
|
27
|
|
Bearing - Front
|
1
|
28
|
|
Plate - Front End
|
1
|
29
|
|
Cylinder
|
1
|
30
|
|
Rotor
|
1
|
31
|
2050520723
|
Blades Set
|
6
|
32
|
|
Plate - Rear End
|
1
|
35
|
|
Bearing - Front
|
1
|
33
|
|
Pin - Spring
|
1
|
34
|
|
Pin - Spring
|
1
|
36
|
|
Bolt - Hex. Soc. Hd.
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168735
|
Front End
Plate Kit
|
27
|
|
Bearing - Front
|
1
|
28
|
|
Plate - Front End
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168736
|
Rear End
Plate Kit
|
32
|
|
Plate - Rear End
|
1
|
35
|
|
Bearing - Front
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
-
|
8940168737
|
Regulator
Kit
|
37
|
|
Regulator
|
1
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
40
|
|
O-Ring
|
1
|
14
|
|
Gasket - Rear Cover
|
1
|
15
|
|
Cover - Rear
|
1
|
16
|
|
Bolt - Half Round Hd. Hex.
|
4
|
-
|
8940168738
|
Trigger
Kit - model C
|
-
|
8940168944
|
Trigger
Kit - model D
|
38
|
|
Ball - Positioning
|
1
|
39
|
|
Spring - Positioning
|
1
|
43
|
|
Trigger
|
1
|
44
|
|
Pin - Spring
|
1
|
45
|
|
Bushing - Trigger
|
1
|
46
|
|
Spring - Trigger
|
1
|
47
|
|
Switch - Reverse
|
1
|
48
|
|
Valve - Reverse
|
1
|
49
|
|
O-Ring
|
1
|
50
|
|
O-Ring
|
1
|
51
|
|
Body - Reverse Valve
|
1
|
52
|
|
Pin - Spring
|
1
|
53
|
|
Seal - Cylinder
|
1
|
54
|
|
O-Ring
|
1
|
55
|
|
Gasket - Reverse Valve
|
1
|
56
|
|
Pin - Trigger
|
1
|
-
|
8940168739
|
Throttle
Kit
|
17
|
|
Seal - Throttle
|
1
|
18
|
|
Bushing - Throttle
|
1
|
19
|
|
Valve - Throttle
|
1
|
20
|
|
Spring - Throttle
|
1
|
-
|
8940168740
|
Air Inlet
Kit
|
21
|
|
Muffler
|
1
|
22
|
|
Deflector - Exhaust
|
1
|
23
|
|
Bolt
|
1
|
24
|
|
O-Ring
|
2
|
25
|
|
Inlet - Air
|
1
|
26
|
|
Pin - Spring
|
1
|
-
|
8940168741
|
Bearings
Kit
|
27
|
|
Bearing - Front
|
1
|
35
|
|
Bearing - Rear
|
1
|
-
|
59
|
8940168578
|
CP7729 Nameplate / Warning
|
1
|
59
|
8940168579
|
CP7739 Nameplate / Warning
|
1
|
-
|
8940168742
|
Tune-Up Kit
(7729)
(Incl: 5, 6, 7, 14, 21, 31, 33, 34, 38, 39, 42, 53)
|
-
|
8940168743
|
Tune-Up
Kit (7739)
(Incl: 5, 6A, 7A, 14, 21, 31, 33, 34, 38, 39, 53)
|
|
|
