293 TPI Autoranging Digital Clamp W/Test Leads Carrying Case Battery

293 TPI Autoranging Digital Clamp W/Test Leads Carrying Case Battery

Price $117.15


Product Code: TPI293
Qty:

Description Prop65

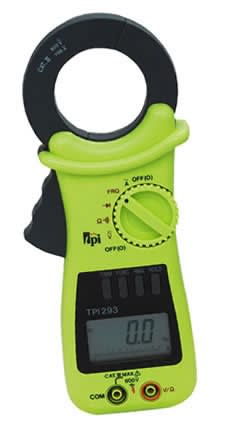

TPI 293 clamp-on plus DMM with True RMS capabilities - TPI offers a full line of digital clamp-on meters for electrical, commercial, HVAC/R, industrial and process control applications. Digital Clamp-On Meter Amp Plus. The 293 is a clamp-on plus DMM with True RMS capabilities. The 293 offers measurements in all basic electrical functions plus:

True RMS: Provides accurate and dependable readings of non-linear loads.

Bar Graph: When measuring frequency, bar graph indicates current level.

TRIM Mode: Smoothes out unstable readings.

Peak Mode: For start-up and inrush currents.

Sleep Mode: Preserves battery life

Data Hold: Holds the reading on the display for easy viewing.

Product Features
  • True RMS 700 Amps AC
  • Measure AC/DC volts, resistance, continuity and frequency
  • Peak hold
  • Data hold
  • CAT III 600 V rated
  • cULus 61010
  • 3-year limited warranty

The 293 comes complete with the following accessories:

  • Carrying Pouch
  • Test Lead Set
  • Instruction Manual
  • Battery

Model 293 Applications

  • Heat anticipator current in thermostats
  • Line voltage
  • Control circuit voltage
  • Heating element resistance
  • Compressor winding resistance
  • Contactor and relay coil resistance
  • Motor and compressor start up current
  • Continuity of wiring
  • Frequency on control and line voltage
  • Record/Min/Max voltage of controls and line voltages
  • Bar graph to indicate rapid fluctuations

Perform the following tests and/or measurements with the 293 and the appropriate function:

HVAC/R

  • ACA - Heat anticipator current in thermostats
  • ACV - Line voltage
  • ACV or DCV - Control circuit voltage
  • OHMS - Heating element resistance (continuity)
  • OHMS - Compressor winding resistance
  • OHMS - Contactor and relay coil resistance
  • ACA - Motor and compressor start up current
  • OHMS - Continuity of wiring
  • Hz/FREQ - Frequency on control and line voltages
  • REC - Record min/max voltage of controls and line voltages
  • ALL - Bar graph to indicate rapid fluctuations

ELECTRICAL

  • ACV - Measure line voltage
  • ACA - Measure line current
  • OHMS - Continuity of circuit breakers
  • DCV - Voltage of direct drive DC motors
  • ACA - Start up current of motors, relays, contactors and transformers

ELECTRONIC

  • ACV - Measure power supply voltage
  • ACA - Measure power supply current
  • OHMS - Continuity of circuit breakers and fuses

SPECIFICATIONS

IEC 1010 Over Voltage:

  • CAT II - 1000V
  • CAT III - 600V
  • Pollution Degree 2

a. DCV:

    Range
    Resolution Accuracy Impedance
    40V
    0.01V ±0.75% of reading, ±3 digits 10MΩ
    400V
    0.1V ±0.75% of reading, ±3 digits 10MΩ
    600V
    1V ±0.75% of reading, ±3 digits 10MΩ

b1. ACV (45Hz to 60Hz):

    Range
    Resolution Accuracy Impedance
    40V 0.01V ±1.0% of reading, ±3 digits 10MΩ
    400V
    0.1V ±1.0% of reading, ±3 digits 10MΩ
    600V
    1V ±1.0% of reading, ±3 digits 10MΩ

b2. ACV (20Hz to 45Hz, 60Hz to 1KHz):

    Range
    Resolution Accuracy Impedance
    40V 0.01V ±2.5% of reading, ±3 digits 10MΩ
    400V
    0.1V ±2.5% of reading, ±3 digits 10MΩ
    600V
    1V ±2.5% of reading, ±3 digits 10MΩ

c. ACA (45Hz to 60Hz):

    Range
    Resolution Accuracy Frequency
    Response
    40A 0.01A ±2% of reading, ±20 digits 45Hz to 60Hz


    ±4% of reading, ±20 digits 30Hz to 45Hz


    ±4% of reading, ±20 digits 60Hz to 1KHz
    400A 0.1A ±2% of reading, ±10 digits 45Hz to 60Hz
    700A 1A ±5% of reading, ±10 digits 30Hz to 45Hz
    ±5% of reading, ±10 digits 60Hz to 1KHz

e. OHM (Resistance):

    Range
    Resolution Accuracy Impedance
    400Ω 0.1Ω ±1% of reading, ±10 digits 600V DC or AC Peak

f. Continuity Buzzer:

    Test Voltage Threshold Over Load Protection
    3V < 50Ω (100 digits) 600 V DC or Peak AC

g. Diode Test:

    Test Voltage
    Max Test Current
    Over Load Protection
    3V
    Approx. 2.5mA
    600 V DC or Peak AC

* Warning: Test Leads: Use only correct type and overvoltage category rating.

h. Diode Test:

    Range Resolution Accuracy Overload Protection
    1KHz 0.1Hz ±0.2% of reading, ±3 digits 600V DC or AC Peak
    10KHz
    0.001KHz
    ±0.2% of reading, ±3 digits 600V DC or AC Peak

General Specifications:

    Max. Volt. between
    any Input and Ground

    600V
    Display Type 4,000 Count, 4 times per
    second update
    Operating Temperature
    -10° to 45°C (14° to 113°F)
    Storage Temperature
    -20° to 55°C (-4° to 131°F)
    Relative Humidity
    0% to 80% (0° - 35°C / 32° - 95°F)
    0% to 70% (35° - 50°C / 95° - 122°F)
    Power Supply
    9 Volt Battery
    Battery Life
    80 hours, Alkaline
    Size (H x L x W)
    40mm x 190mm x 65mm

    (1.5in x 7.25in x 2.5in)
    Weight
    315g (11.1oz)
