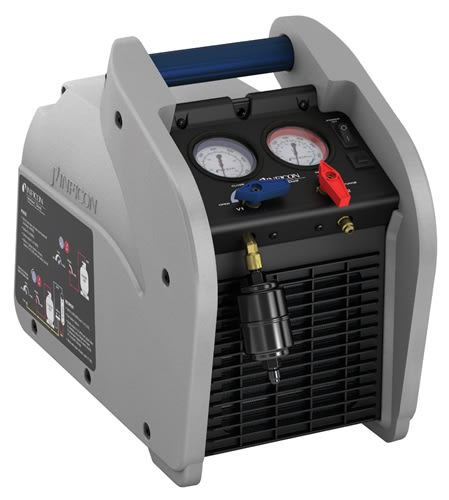

Vortex Dual AC, the next generation refrigerant recovery machine from INFICON, expands on the proven high performance and durability of the original Vortex. An upgraded compressor with ceramic bearings provides even longer life, increased recovery rates and a guarantee against failed compressors — under any circumstances. Vortex AC contains a single-valve, liquid-tolerant, oil-less compressor driven by a ˝ HP AC motor. This compressor/motor combination ensures durability and longevity without compromising recovery rates or torque. Vortex AC is ready for your job, whether it involves large amounts of refrigerant vapor or liquid. It carries an industry-leading, three-year, over-the-counter replacement warranty for the whole machine—the compressor, valves, fan and all other components. Vortex AC continues to offer the innovative and revolutionary features of the original Vortex. Its individual valve assembly with dual-sealed valve stems eliminates leaks, and with its three-valve design, you can purge the machine without changing hoses. Vortex AC is light, compact and well-balanced, providing you with convenience and durability.
Voltage
|
115 VAC, 60 Hz
|
Power
|
1/2 Hp
|
Fittings
|
1/4" SAE Flare
|
Compressor
Type
|
1 Cylinder, Oil-less
|
Recovery
Vapor
|
0.29 lb/min
|
Recovery
Liquid
|
2.97 lb/min
|
Recovery
Push / Pull
|
11.33 lb/min
|
High
Pressure Shut-Off
|
550 psi
|
Auto
Shut-Off
|
-
|
Self
Purge
|
-
|
Overfill
Protection
|
-
|
Dimensions
|
18" x 9.5" x 14.5"
|
Weight
|
27 lb / 12.2 kg
|
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
- Self-purges without the need to change hoses
- Gauges are protected, yet accessible for quick, easy viewing
- Textured, reflective handle stays cooler in direct sunlight
- Revolutionary condenser design for more efficient heat transfer and lower head pressures
- Large rear-mounted fan provides exceptional cooling
- 1/2 HP motor drives the single valve, liquid-tolerant, oil-less compressor for high recovery rates
- Optional overflow protection device is easily installed
- Individual valve assembly eliminates leaks
Refrigerants: Recovers commonly used CFCs, HCFCs, and HFCs including blends such as R410A.
Weight: 27 lbs. (12.2 kg)
Dimensions: 18"L x 9.5"W x 14.5"H
High-pressure shut-off: 550 psi
Gauge ranges: Low pressure 30" Hg Vac – 500 psig, High pressure 0-800 psig
Compressor: 1⁄2 HP oil-less, single valve, AC motor drive
Power: 115 VAC, 60 Hz, 10 Amps
Warranty: 3-year over-the-counter replacement
INFICON Vortex AC is an EPA-Certified machine in accordance with Section 608 of the Clean Air Act. It has been independently tested and certified to be in conformance with ARI standard 740-1998 by Underwriters Laboratories, Inc.
| Representative Refrigerant |
Category |
Push-Pull Rate
(lb/min) |
Liquid Rate
(lb/min) |
Vapor Rate
(lb/min) |
| R134a |
III |
7.57 |
2.49 |
0.22 |
| R22 |
IV |
11.81 |
2.97 |
0.29 |
| R410A |
V |
11.33 |
3.45 |
0.29 |
|
|
|
|
|
|
|
