6007B Associated Battery Charger Analyzer Parts List

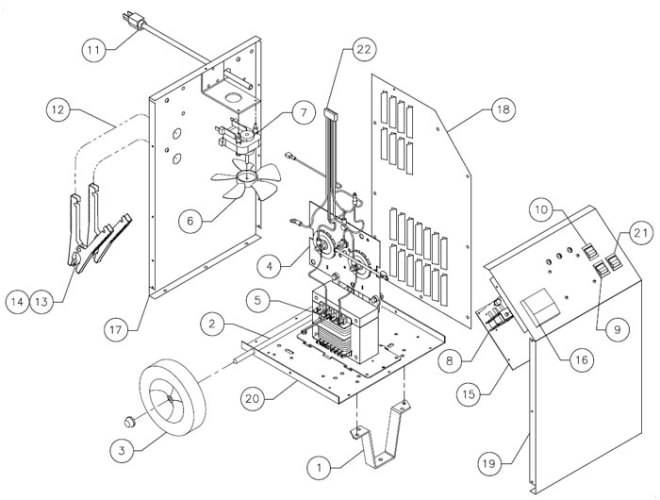

MODEL 6007B REPAIR PARTS
Diagram # Description Part Number
1 Front leg 605671
2 Axle w/nuts 610052
3 Wheel w/nuts 611157
4 Rectifier w/wiring harness 611193
5 Transformer 611168
6 Fan Blade 610189
7 Fan Motor w/blade 610190
8 DC Circuit Breaker (2) 610987
9 Switch 610291
10 Switch On-Off-On 611167
11 AC Cord 610696
12 DC Cable Set 610820
13 Clamps (1 pair w/jaws) 6199
14 Jaw Kit (repairs 1 clamp) 610970
15 Control PCB 611155
16 Ammeter 610346
17 Back Panel 610977
18 Right Side Panel 611032
19 Front Panel 611221
20 Base Panel 610054
21 Switch Dead Battery Overide 610263
22 Harness
611278

Left Side Panel 611031

Top Panel 611011

Handle 610753

Clamp Bar 610517

Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $61.70
605671 Associated Front Leg With Screws 605671 Associated Front Leg With Screws

Front Leg With Screws

Price $37.80
610052 Associated Axle With Nuts 610052 Associated Axle With Nuts

610052 Associated Axle With Nuts. Axle 3/8" O.D. x 15-3/4" Long

Price $36.40
610054 Associated Universal Base 6009 (See Notes) 610054 Associated Universal Base 6009 (See Notes)

610054 Associated Universal Base 6009 (UNIVERSAL BASE 6009 (SEE 610498 Base if transformer has four "L" shaped legs.)

Price $26.50
610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $17.10
610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $73.50
610263 Associated Rocker Switch SPDT 610263 Associated Rocker Switch SPDT

610263 Associated Rocker Switch SPDT

Price $13.80
610291 Associated Rocker Volt Switch (Momentary) 610291 Associated Rocker Volt Switch (Momentary)

Associated Rocker Volt Switch

Price $31.70
610346 Associated Ammeter Horizontal 0-50 DC Amp Range 610346 Associated Ammeter Horizontal 0-50 DC Amp Range

610346 Associated Ammeter Horizontal 0-50 DC Amp Range

Price $60.60
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $9.00
610696 Associated Power Cord 115 Volt 610696 Associated Power Cord 115 Volt

610696 Associated Power Cord 115 Volt

Price $37.00
610753 Associated Chrome Handle 610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213
610820 Associated DC Cable Set 6.5 ft 6.5 AWG 610820 Associated DC Cable Set 6.5 ft 6.5 AWG

610820 Associated DC Cable Set 6.5 ft 6.5 AWG

Price $143.80
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $21.20
610977 Associated Back Panel 19 Black 610977 Associated Back Panel 19 Black

610977 Associated Back Panel 19 Black

Price $32.30
610987 Associated DC Circuit Breaker 053-0067 (Qty 2) 610987 Associated DC Circuit Breaker 053-0067 (Qty 2)

DC Circuit Breaker 053-0067 (Qty 2)

Price $21.40
611011 Associated Top Panel 7 Inch Blue 611011 Associated Top Panel 7 Inch Blue

611011 Associated Top Panel 7 Inch Blue

Price $24.80
611031 Associated Left Slope Side Panel 40° Blue 611031 Associated Left Slope Side Panel 40ø Blue

611031 Associated Left Slope Side Panel 40° Blue

Price $26.30
611032 Associated Front Slope Side Panel 40° Blue 611032 Associated Front Slope Side Panel 40ø Blue

611032 Associated Front Slope Side Panel 40° Blue

Price $26.30
611155 Associated PC Board 6007 132-0151 611155 Associated PC Board 6007 132-0151

611155 Associated Pc Board 6007 132-0151. If your board has a daughter board with relays, order new style board 611311 & 611470 Relay board)

Price $274.30
611157 Associated Wheel Kit Rubber 6 Inch 611157 Associated Wheel Kit Rubber 6 Inch

611157 Associated Wheel Kit Rubber 6 Inch

Price $42.60
611167 Associated SPDT Switch (On-Off-On) 611167 Associated SPDT Switch (On-Off-On)

611167 Associated SPDT Switch (On-Off-On)

Price $22.60
611168 Associated Transformer 6007A 611168 Associated Transformer 6007A

611168 Associated Transformer 6007A

Price $370.20
611193 Associated Rectifier / Wiring Harness 611193 Associated Rectifier / Wiring Harness

Rectifier / Wiring Harness

Price $193.00
611221 Associated Front Panel 6007B W/Momentary Switch 611221 Associated Front Panel 6007B W/Momentary Switch

Front Panel 6007B W/Momentary Switch

Price $69.20
611278 Associated Harness 7 Pin Housing 047-1810 611278 Associated Harness 7 Pin Housing 047-1810

611278 Associated Harness 7 Pin Housing 047-1810

Price $44.70
6199 Associated 400 Amp Clamp Kit (Pair) 6199 Associated 400 Amp Clamp Kit (Pair)

Made in the USAProfessional quality heavy-duty clamps for all booster cables. Replace Associated clamps or upgrade other lesser products with these professional quality replacement clamps.

Price $26.90
