5210A-PE Schumacher Battery Charger Parts List



Schumacher 5210A-PE Repair Parts
Part No.
 		Description
 		Qty
0090026054
 115 Volt Power Cord
 1
0499000035
 Mini Rocker Selector Switch SPDT (On-Off-On) 1
0499000036
 2 Position Rocker Switch (6 Terminals)
1
2299000915
 PC Charging Board
 1
2299001006
 Heatsink Rectifier SCR Assembly
 1
3899000515
 Positive / Negative Cable and Clamp Set
1
3899001954
 Positive / Negative Cable and Clamp Set (14 Gauge)
1
3899001996
 Positive / Negative Cable and Clamp Set (12 Gauge)
1
5399100103
 Ammeter Horizontal
 1
RR50
 Rectifier Diode Replacement Kit
 1
Sort By:
Page of 1
0090026054 Schumacher 115 Volt Power Cord 18/3 74" 0090026054 Schumacher 115 Volt Power Cord 18/3 74"

0090026054 Schumacher 115 Volt Power Cord 18/3 74" Long 18 AWG/3 SJTOW Power Cord. 115 Volt. Black 1/8" Quick Disconnect , White Split Wire Quick Disconnect

Price $19.25
0499000035 Schumacher Mini Rocker Selector Switch SPDT (on-off-on) 0499000035 Schumacher Mini Rocker Selector Switch SPDT (on-off-on)

Mini Rocker Selector Switch. SPDT Center Off (on-off-on) 15amp 115 volt 3/16" Terminals

Price $12.45
0499000036 Schumacher 2 Position Rocker Switch (6 Terminal) 0499000036 Schumacher 2 Position Rocker Switch (6 Terminal)

0499000036 Schumacher 2 Position Rocker Switch (6 Terminal)

Price $12.45
2299000729 Schumacher PC Charging Board 2299000729 Schumacher PC Charging Board

PC Charging Board includes wiring. Requires soldering to install on SCR Heatsink.

Discontinued
2299000915 Schumacher PC Charging Board (3 Wire) 2299000915 Schumacher PC Charging Board (3 Wire)

PC Charging Board includes wiring. Requires soldering to install on SCR Heatsink. 3 Wires, Black, Green, Grey. Single green LED.

Discontinued
2299001006 Schumacher Discontinued Heatsink Rectifier SCR Assembly 2299001006 Schumacher Heatsink Rectifier SCR Assembly

Discontinued Heat Sink Rectifier Assembly. 2 Diode Design with SCR Mounted. Some soldering required for installation on circuit board. Individual Diodes can be found here.

Discontinued
2299002112 Schumacher Heatsink Rectifier SCR Assembly With Board 2299002112 Schumacher Heatsink Rectifier SCR Assembly With Board

Heat Sink Rectifier Assembly. 2 Diode Design with SCR & Circuit board Mounted. No soldering required for installation. Individual Diodes can be found here.

Discontinued
3899000515 Schumacher Clamps Cables Red & Black Set 3899000515 Schumacher Clamps Cables Red & Black Set

Battery Charger Clamps Cables Red & Black Set. 6.75 ft Long, 16ga, 1/4" quick disconnect on both leads. Used on chargers with 25 amp max rates. Can be used as a generic replacement for Small bench top chargers.

Discontinued
3899001954 Schumacher Clamps Cables Red & Black Set 14 Gauge 84" 3899001954 Schumacher Clamps Cables Red & Black Set 14 Gauge 84"

Battery Charger Clamps Cables Red & Black Set. 7ft Long, 14ga, 1/4" quick disconnects. Used on chargers with 50 amp max rates. Can be used as a generic replacement for small/medium size chargers.

Discontinued

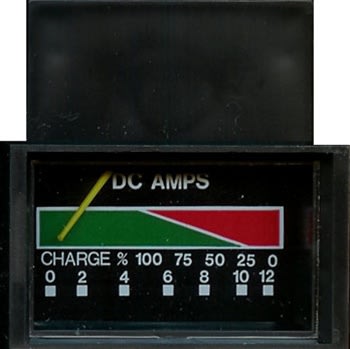

5399100073 Schumacher Ammeter Horizontal 0-12 AMP 5399100073 Schumacher Ammeter Horizontal 0-12 AMP

Ammeter Horizontal 0-12 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face with 0-100% Battery charge level scale. 0-12 Amp range and 1/4" Spade Terminal Connections for ease of installation.

Discontinued


*Variations of models due to production changes and parts availability are not our responsibility
*No refunds on electrical components
*Service should be performed only by a qualified technician
*Please read all supporting documentation and safety instructions
