You are here: Home > Battery Charger Parts > Century Battery Charger Repair Parts > 141-313-902 Canadian Tire 11-1563-8 60/40/2/250 amp W/ Test (Horiz Meters)

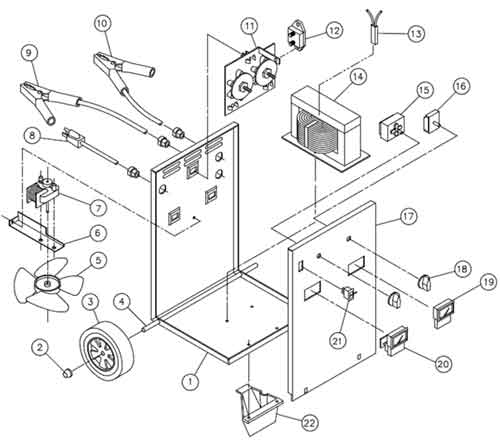

141-313-902 Canadian Tire 11-1563-8 60/40/2/250 amp W/Test Horiz Meters
Sort By:
Page of 1
083-265-000 Stainless Steel Sheet Metal Screw (20 Pack) 083-265-000 Stainless Steel Sheet Metal Screw (20 Pack)

#10 1/2" Pan Head A2 Phillips Head Stainless Steel Sheet Metal Screw 20 Pack. Replace those unsightly rusting, loose or missing cabinet screws with our Stainless screws for a neat finish. Oversized to accommodate loose cabinet or stripped holes.

Price $2.85
238-006-666 Clamp Kit 8 Foot 6 Gauge Parrot Jaw 238-006-666 Clamp Kit 8 Foot 6 Gauge Parrot Jaw

8' 6AWG Welding Wire Lead Set with heavy duty polished clamps featuring coated clamp handles. a 50 lb. Jaw Strength provides positive connections and color coded wires make for easy identification. These even have molded strain relief built on the cables. Ring terminal connections make installation a snap.

Price $67.05
238-260-666 Century Positive Cable & Clamp Assembly 6ga 106" 238-260-666 Century Positive Cable & Clamp Assembly 6ga 106"

238-260-666 Century Positive Cable & Clamp Assembly 6ga 106" for Century / Solar battery chargers. Universal Style for other chargers. Booster Clamp features 6 Gauge solid copper wire, dual power jaws for better conductivity with a braided internal power crossover strap (distributes full power to both jaws), heavy duty construction for durability and long life.

Price $29.50
238-261-666 Century Negative Cable & Clamp Assembly 6ga 106" 238-261-666 Century Negative Cable & Clamp Assembly 6ga 106"

238-261-666 Century Negative Cable & Clamp Assembly 6ga 106" for Century / Solar battery chargers. Universal Style for other chargers. Booster Clamp features 6 Gauge solid copper wire, dual power jaws for better conductivity with a braided internal power crossover strap (distributes full power to both jaws), heavy duty construction for durability and long life.

Price $29.50
246-041-666 Universal Selector Knob 246-041-666 Universal Selector Knob

246-041-666 Universal Selector Knob with set screw for controls with 1/4" Stem. Replaces all knobs with 1/4" diameter shaft. Fits 1/2 shaft and 3/4 style shaft stems.

Price $7.65
246-078-666 Test Switch SPDT Momentary 246-078-666 Test Switch SPDT Momentary

Mini snap-in paddle handle rocker switch with are single pole double throw momentary contact arrangement ON-OFF-(ON) momentary and a 10 amp rating.

Price $8.45
246-273-666 Universal Mechanical Timer 2 Hour With Knob 246-273-666 Universal Mechanical Timer 2 Hour With Knob

120 Minute mechanical timer with knob. 120 minute total time two 1/4 spade terminal connections, no finish bell. Replaces older timer 246-337-000, 246-167-000, 246-167-666. Mounting on your timer may be different than the replacement, inspect your unit before purchase, some older units may have had electric timers which may require rewiring. (Includes Screws)

Discontinued see 0099000094
246-408-000 6 Position Rotary Selector Switch (No Knob) 246-408-000 6 Position Rotary Selector Switch (No Knob)

246-408-000 6 Position Rotary Selector Switch (No Knob). This switch has been modified from the original metal stem design to a plastic stem and the pin locations have changed. Switch should be wired number to number not by tab location.

Discontinued
246-408-666 Rotary Selector Switch 6 Position With Knob 246-408-666 Rotary Selector Switch 6 Position With Knob

246-408-666 Rotary Selector Switch 6 Position With Knob. This switch has been modified from the original metal stem design to a plastic stem and the pin locations have changed. Switch should be wired number to number not by tab location. Includes instructions.

Discontinued
246-409-666 Circuit Breaker 90 Amp 246-409-666 Circuit Breaker 90 Amp

SLA90 Circuit Breaker, Open construction, automatic reset, 90 Amp, no terminal Hardware

Price $22.90
247-074-666 Ammeter Horizontal 0-60 Amp Range W/Start 247-074-666 Ammeter Horizontal 0-60 Amp Range W/Start

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and bolt through induction pick-up for greater accuracy.

Discontinued
247-132-000 Ammeter Horizontal 0-60 Amp Range 247-132-000 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued See 247-147-000
247-147-000 Ammeter Horizontal 0-60 Amp 247-147-000 Ammeter Horizontal 0-60 Amp

247-147-000 Ammeter Horizontal 0-60 Amp features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued
247-158-666 Ammeter Horizontal 0-60 Amp Range 247-158-666 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued See 247-132-000
248-002-666 Power Cord With Strain Relief (1580) 248-002-666 Power Cord With Strain Relief (1580)

248-002-666 Power Cord With Strain Relief (1580)

Price $11.17
248-195-666 Power Cord With Strain Relief 248-195-666 Power Cord With Strain Relief

248-195-666 Power Cord With Strain Relief

Discontinued See 248-002-666
249-066-666 Solar Booster Clamps Positive & Negative 249-066-666 Solar Booster Clamps Positive & Negative

Clamps Positive & Negative. Screw Type Connection for ring terminal cables to anchor wire for solderless connection. Dual Hot Jaws for better power distribution. Includes Phillips anchor screws. Does not include hardware for cables, (ring terminals, solder etc...).

Discontinued - replaced by 238-006-666
249-093-900 Black Negative Booster Clamp 249-093-900 Black Negative Booster Clamp

Black Negative Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $15.06
249-094-900 Red Positive Booster Clamp 249-094-900 Red Positive Booster Clamp

Red Positive Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $15.06
316-014-000 Fan Blade 6" 4 Blade CW 316-014-000 Fan Blade 6" 4 Blade CW

316-014-000 Fan Blade 6" 4 Blade CW

Discontinued see 316-009-000
412-751-666 Handle W/Hardware 412-751-666 Chrome Battery Charger Handle

412-751-666 Chrome Battery Charger Handle. Replaces 442-020-166 and other older Century / Solar Handles

Price $34.82
442-020-166 Century Battery Charger Handle 442-020-166 Century Battery Charger Handle

442-020-166 Century Battery Charger Handle. Flat side black painted finish.

Price $14.85
51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. 51-236 Goodall 250 Amp Heatsink Rectifier

51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. Extra Long center studs for thick transformer lead wires.

Discontinued - see 865-682-666
512-127-000 Rectifier Insulator Standoff 512-127-000 Rectifier Insulator Standoff

512-127-000 Rectifier Insulator Standoff. Connects to the back wall of the charger chassis to provide a mount for the rectifier.

Price $3.85
865-638-200 Voltmeter Horizontal Circuit Board Assy 865-638-200 Voltmeter Horizontal Circuit Board Assy

Voltmeter Testmeter Horizontal features easy snap-in installation, no tools required. Displays. Battery charge level scale, battery Condition Meter, Alternator test scale Bad Weak Good Scale. 1/4" Spade Terminal Connections make installation a snap. Displays both 6 and 12 Volt Systems.

Discontinued See 865-931-666
865-682-666 Heatsink Rectifier Kit 865-682-666 Heatsink Rectifier

865-682-666 Heatsink Rectifier.  Product as pictured.  Does not include any mounting hardware (512-127-000).

Price $69.95
865-799-666 Voltmeter Horizontal W/ Control Board 865-799-666 Voltmeter Horizontal W/ Control Board

Snap-In installation, no tools required. 0-20 Volt Range, 0-100% Charge Scale, Alternator Test Scale, Reverse Polarity Indicator Light (Red), Charge Complete Indicator (Green) 247-120 Meter & Circuit Board, 1/4" Spade Terminal Connections.

Discontinued
865-931-666 Voltmeter Horizontal With Circuit Board Assembly 865-931-666 Voltmeter Horizontal With Circuit Board Assembly

Voltmeter Testmeter Horizontal features easy snap-in installation, no tools required. Displays. Battery charge level scale, battery Condition Meter, Alternator test scale Bad Weak Good Scale. 1/4" Spade Terminal Connections make installation a snap. Displays both 6 and 12 Volt Systems.

Discontinued
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Discontinued see 0099000094
