Diagram # Part # Description
2 70-408 V Belt
3 70-412 Pulley, Engine
4 70-628 V Belt
6 79-373 Generator w/pulley

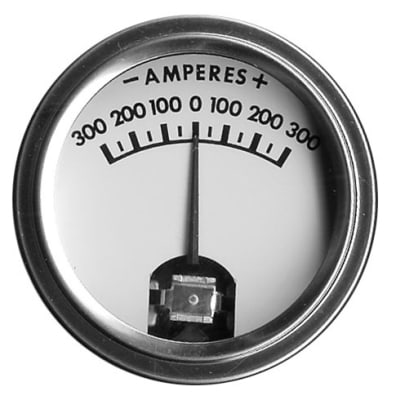

7 70-447 Ammeter
8 70-067 Red Clamp w/hardware
9 70-068 Black Clamp w/hardware
10 71-210 Starter Cable Assembly
12 71-601 16 HP Engine Kohler
13 71-607 Base Weldment
14 70-410 Cover Weldment
15 71-620 Control Box
16 70-037 Tightener Arm
17 70-437 Cable Assembly w/Clamps
18 70-465 Back Plate
19 70-440 Tightener Arm, L.H.
20 70-440 Tightener Arm, R.H.
21 77-181 Solenoid, Continuous,Heavy-Duty
23 77-200 Switch Mounting Pan
24 70-480 Switch Assembly
25 77-327 Tightener Plate
26 78-129 Latch Assembly
41 77-321 Resistor Assembly
42 76-048 Cable Hold-Down
Additional Parts
61-744 Cable Storage Rack
61-741 Canvas Cover
61-752 Anti Vibration Kit (Shock Pack)
No. Part # Description
1 70-395 Commutator end
2 79-392 Brush holder ass'y
3 79-396 Brush
4 79-398 Field coil
5 NLA Frame & field ass'y
6 79-402 Thru-bolt
7 NLA Armature
8 79-399 Bearing (2)
9 NLA Thrust washer
10 70-384 Drive end plate
11 70-041 Pulley
12 70-363 Washer & Nut
|
|
|
