117-040 YA219B Snap-On 90 amp MIG welder (phase-control)

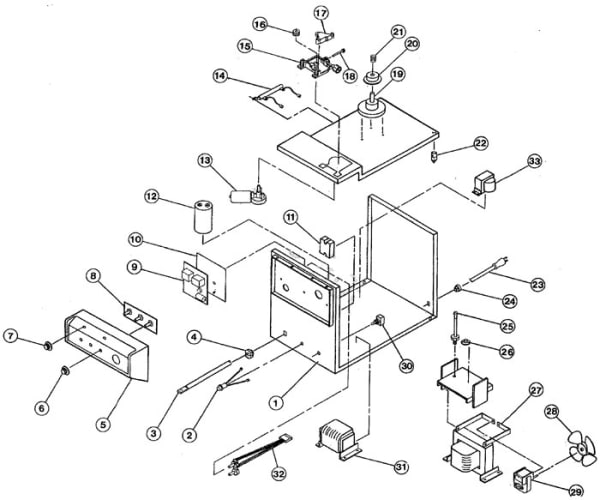

117-040 Replacement Parts List
Item No.
 		Lincoln Stock #
 		Customer #
 		Description
1
711-155-056
 Face Plate
2
245-085-666
 Power Light 120 Volt AC
3
238-223-666
 Ground Cable, 6 Gauge, 9'
4
541-057-000
 Strain Relief
5
312-102-666
 Molded Nose
6
246-127-666
 Knob
7
246-162-000
 Knob
8
 880-114-666
 880-114-666
 Spot-Stitch Circuit Board
9
 880-113-666
 880-113-666
 Main Circuit Board
10
512-041-666
 Insulation
11
 216-055-666
 216-055-666
 Triac Relay 40 Amp
12
 213-018-666
 213-018-666
 Capacitor, 45,000 mf, 45 Volt DC
13
 216-079-666
 216-079-666
 Drive Motor with Gearbox, OSLV
14
245-038-200
 25 & #2, 50 Watt Bleeder Resistor
15
 880-130-666
 880-130-666
 Drive Base Assembly
16
 310-122-500
 4323
 Drive Roller 0.024 / 0.030 / 0.035
17
312-107-000
 Tension Arm Only
18
239-208-000
 Inlet Guide Tube
19
 312-066-666
 860-575-100
 Spindle
20
 312-110-666
 312-110-666
 Spool Adapter
21
330-029-666
 Spool Tensioner Spring
22
 246-086-666
 246-086-666
 Gas Solenoid, 24 Volt DC
23
248-182-666
 Power Cord
24
541-020-666
 Strain Relief
25
 860-476-666
 860-476-666
 Diode Assembly
26
 216-053-666
 216-053-666
 Thermostat
27
880-071-888
 Main Transformer
28
316-009-666
 Fan Blade
29
 216-087-666
 216-087-666
 Fan Motor
30
246-210-666
 Power Switch, SPST, 20 Amp, 120 Volt AC
31
860-572-888
 Reactor
32
 880-052-666
 880-052-666
 Heat & Wire Speed Harness with Potentiometers
33
880-070-888
 Drive Transformer
34
 238-155-000
 235-155-500
 10' Mig Gun (Not Shown)
35
412-304-666
 Copper Jumper Bar (Not Shown)
36
412-280-666
 Gun Connector (Not Shown)
Sort By:
081-055-666 Screw With Washer & Nut 081-055-666 Screw With Washer & Nut

081-055-666 Screw With Washer & Nut

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
216-055-666 Relay Triac 40 Amp Replaces Marquette # 43700007 216-055-666 Relay Triac 40 Amp

Relay Triac 40 Amp Replaces Marquette # 43700007

Price $39.95
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8” brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Discontinued
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008. 246-086-666 Century Solenoid 24 Volt Air Service

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008, B7161370.

Discontinued
310-122-500 Century Steel Drive Roller .024 .030 .035 4323 310-122-500 Century Steel Drive Roller .024 .030 .035 4323

Century Drive Roller .024 .030 .035 in Part number 4323. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Discontinued
312-110-666 Adaptor, Spool 312-110-666 8" Spool Adapter

312-110-666 8" Spool Adapter. 8" spool adapter for Century made welders. Works with spindles 312-076-666 or 312-066-666. For 8" spool adapter for Lincoln Electric made welders see part # KH720

Price $15.04
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id (Each)

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $8.00
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $39.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
334-228-000 Diffuser, Gas Mig Gun Large Id 334-228-000 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Discontinued see KP35-50
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH712 Lincoln .035" Tweco Style Mig Contact Tip (10 Pack)

KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. Replaces Century and Marquette Part Numbers: 4311, 43110, 334-161-000, M15524, KP11-35 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Discontinued
KP35-50 Diffuser, Gas Mig Gun Large Id KP35-50 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Price $15.99
